001D30012 - Tschorn 3D Tester Digital - 12mm Shank, 139mm Reach, 3mm Probe Tip

Original price CAD$540.00 - Original price CAD$540.00
Original price
CAD$540.00 - CAD$540.00
Current price CAD$540.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021

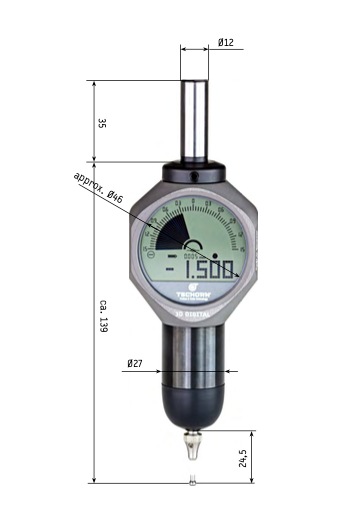

  • Shank Size: 12 mm
  • Reach: 139 mm
  • Probe Tip: 3 mm Ball
  • Available in both Metric and Imperial

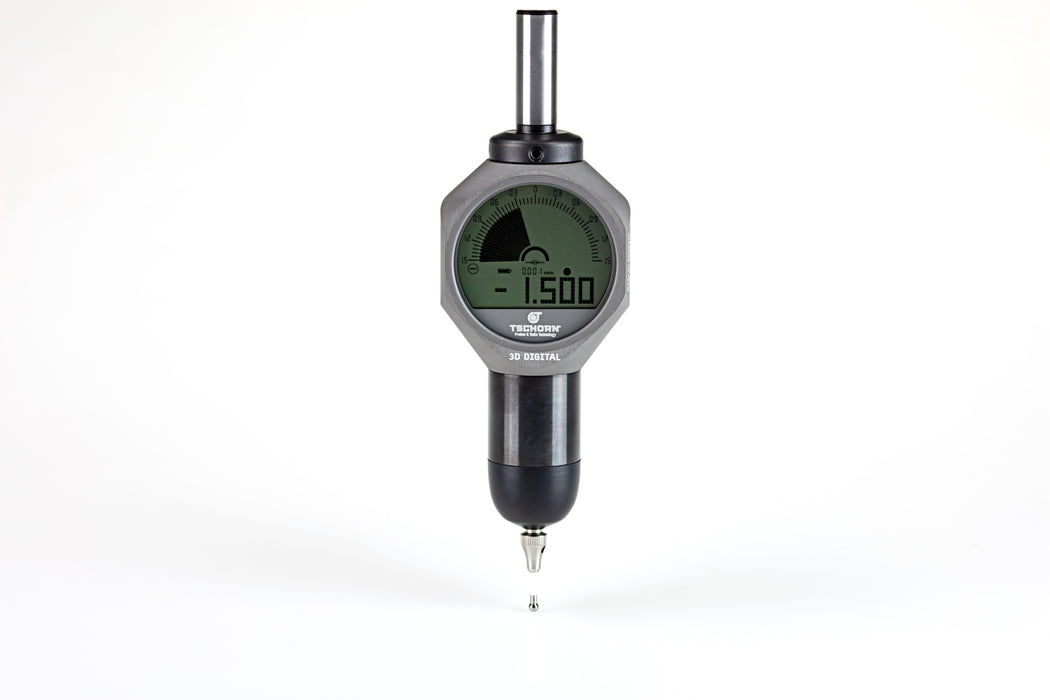

Tschorn 3D Digital Tester

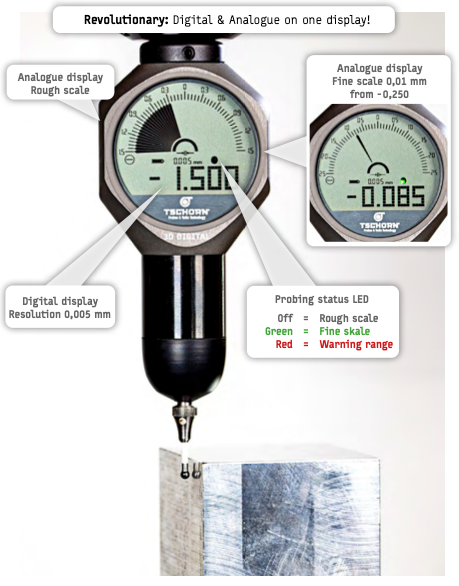

Revolutionary! The new 3D Tester Digital combines the best of two worlds, as the 3D Tester Digital is digital and analogue at the same time: The digital display with numbers allows you to accurately read digitally. Tracking a rapidly changing digital display with your eyes is nearly certainty, the additional analog display of the 3D Tester Digital gives you security when reading. Because a moving pointer can be followed visually much better and more reliably.

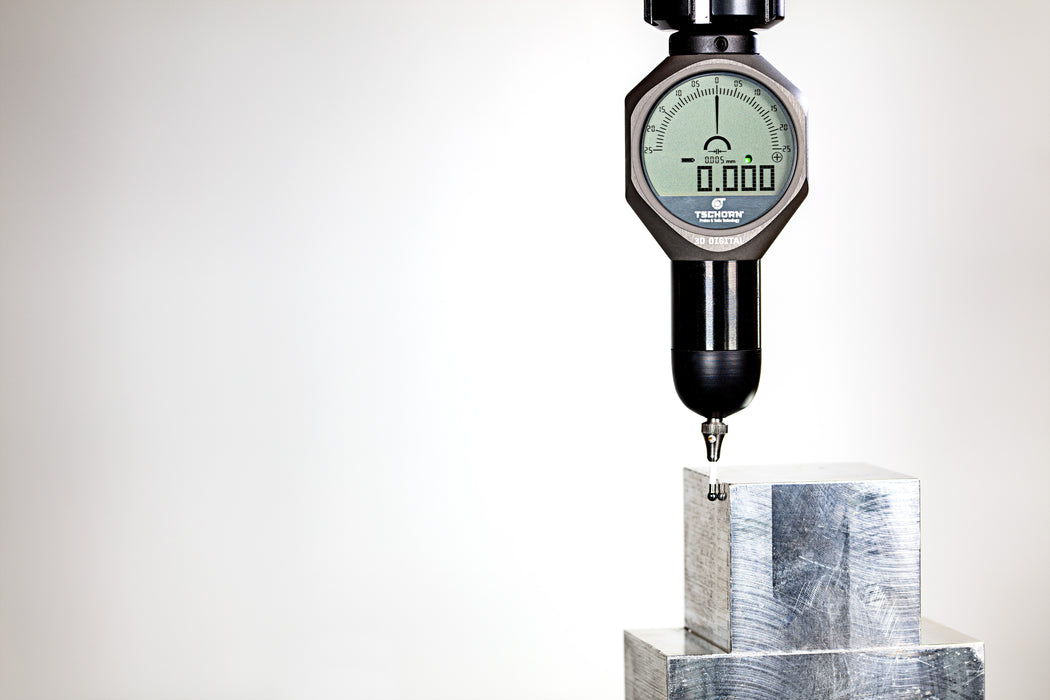

Additionally, a built-in LED shows the status of your probing with the help of different colours and protects you from overpassing and a possible resulting defect. With the 3D Tester Digital, you quickly and easily determine workpiece zero points and lenghts in all axial directions (X/Y/Z) and you can adjust you workpiece or vice to the machine axis.

Of course, the 3D Tester Digital is small and slim, waterproof (IP67) and is delivered with a serial number and a test certificate. The scope of delivery also includes a CR2450 battery and a ceramic probe tip Ø3.

Both items are available as spare parts.
Switch on the 3D Tester Digital by moving the probe tip in any direction X, Y or Z. If not used, the probe switches off after 2 minutes.
