002402100 - Tschorn Zero Setter Micro 100mm with Magnet

Original price $280.00 USD - Original price $280.00 USD
Original price
$280.00 USD
$280.00 USD - $280.00 USD
Current price $280.00 USD
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Height: 100 mm
  • Housing Diameter: 54.5 mm
  • Palper Diameter: 42 mm
  • Tolerance: 100.00 mm +/- 0.01 mm

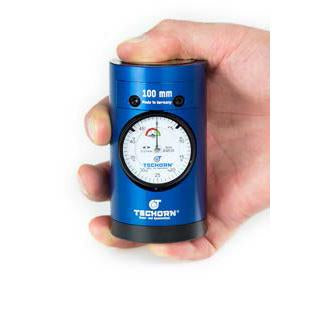

2402100 Tschorn Zero Setter Micro with Magnet

High precision zero point indicator.

Equipped with dual scale measuring display for easy tool or workpiece setup.

Also available without magnet

Usage:

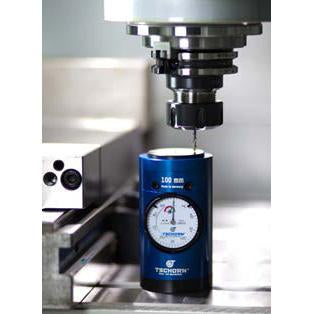

For accurate position determination of workpiece surfaces or tool lengths in the Z direction on milling or turning machines. The device is placed on the workpiece. Then, with the tool stationary, carefully drive onto the device until both pointers on the dial gauge indicate "0". The reference dimension of 100 mm to the workpiece has now been reached. Thanks to a safety spring travel, the zero adjustment device also runs over a max. 2 mm out.


Execution:
A version with built-in magnets is also available so that the zero setter can also be mounted sideways.
