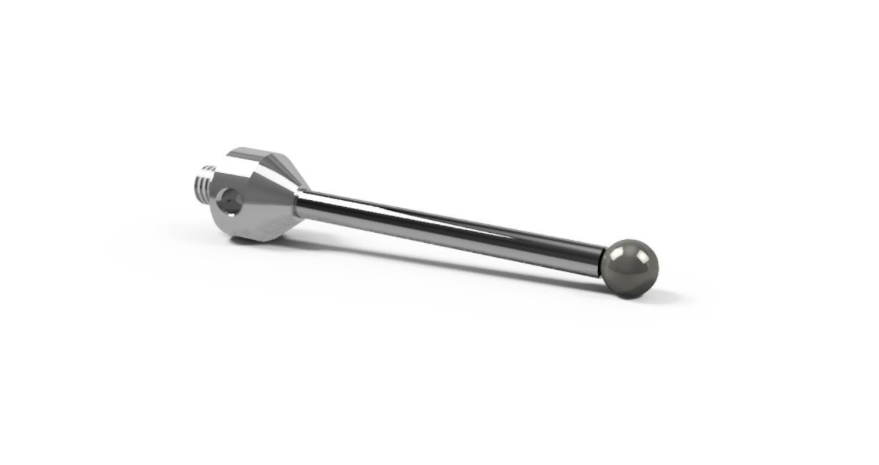

SM5 030 058 SCA - Straight M5 CMM Stylus 3mm Silicon Nitride Ball, 58mm Tungsten Carbide Stem, EWL 48mm

SM5 030 058 SCA - Straight M5 CMM Stylus 3mm Silicon Nitride Ball, 58mm Tungsten Carbide Stem, EWL 48mm

CAD$80.00 - CAD$80.00
CAD$80.00
CAD$80.00 - CAD$80.00
CAD$80.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M5
  • Ball Size: 3 mm Ball
  • Ball Material: Silicon Nitride
  • Stem Length: 58 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 48 mm

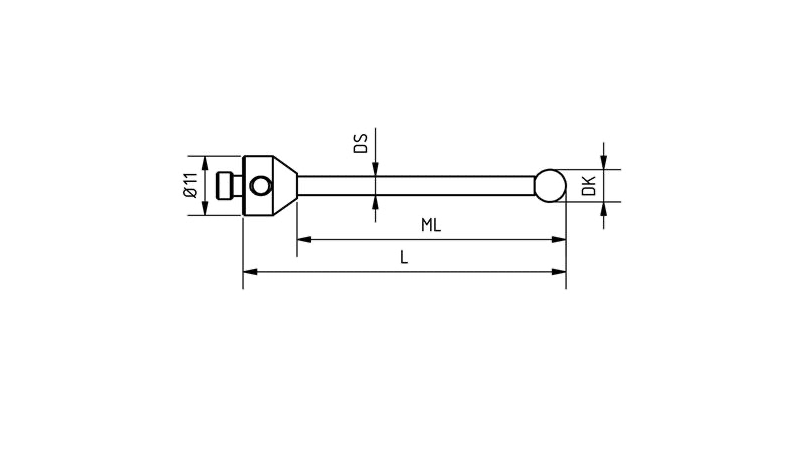

  • DK: 3 mm
  • L: 58 mm
  • ML: 48 mm
  • DS: 2 mm
