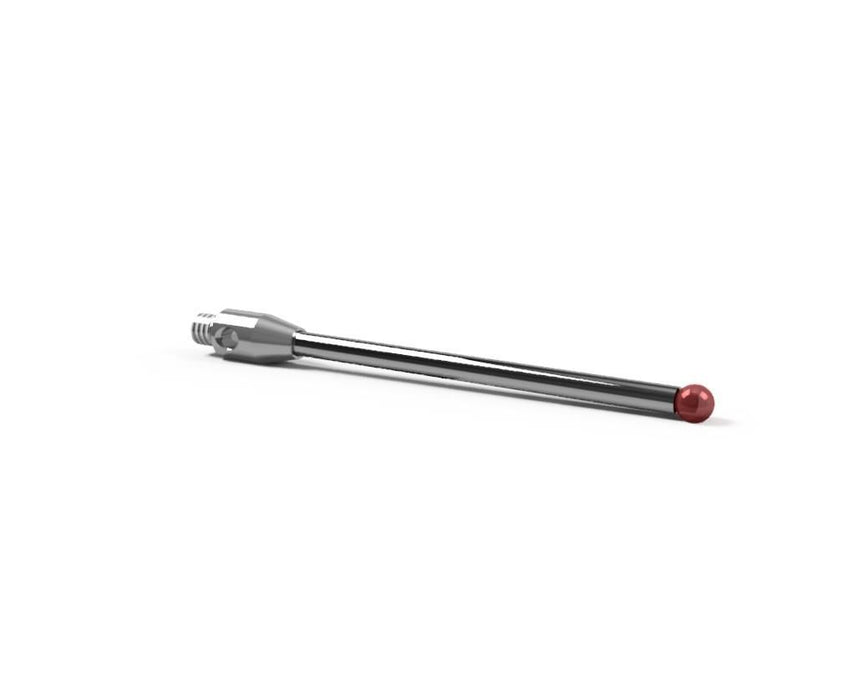

SM2 010 010 RCA - Straight M2 CMM Stylus 1mm Ruby Ball, 10mm Tungsten Carbide Stem, EWL 5mm

SM2 010 010 RCA - Straight M2 CMM Stylus 1mm Ruby Ball, 10mm Tungsten Carbide Stem, EWL 5mm

$37.00 - $37.00
$37.00
$37.00 - $37.00
$37.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M2
  • Ball Size: 1 mm Ball
  • Ball Material: Ruby
  • Length: 10 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 5 mm

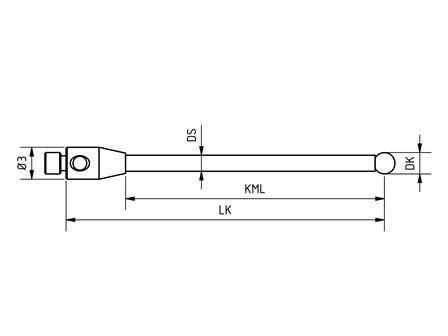

  • DK: 1 mm
  • LK: 10 mm
  • KML: 5 mm
  • DS: 0.7 mm

Equivalent to:

  • Zeiss 602030-8006-000
  • Renishaw A-5003-1325
  • QMark TM2-0010-.5
  • ITP TH M2 010 03 010
  • Hexagon 3969441
