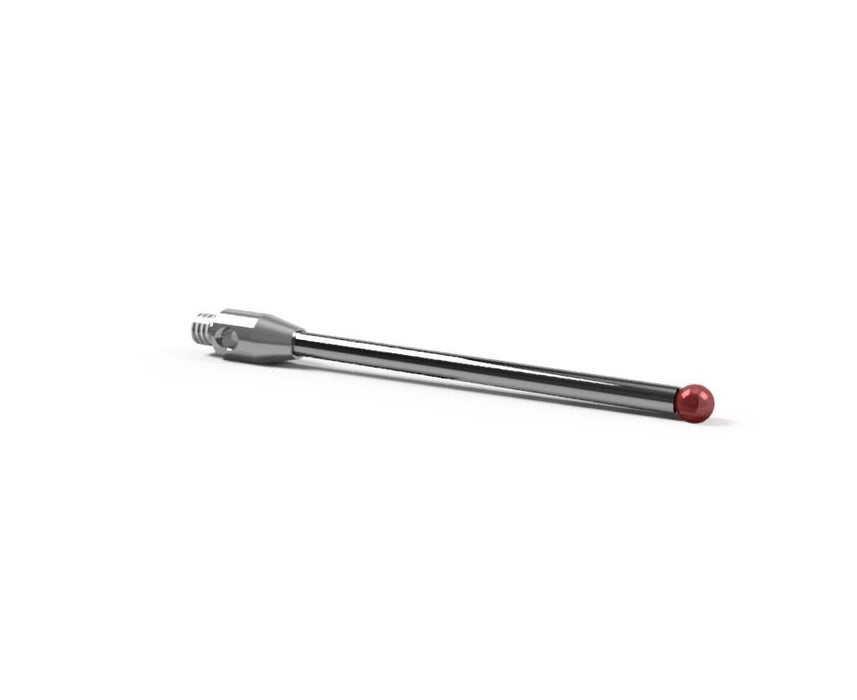

SM2 010 010 RSS - Straight M2 CMM Stylus 1mm Ruby Ball, 10mm Steel Stem, EWL 5mm

SM2 010 010 RSS - Straight M2 CMM Stylus 1mm Ruby Ball, 10mm Steel Stem, EWL 5mm

CAD$23.00 - CAD$23.00
CAD$23.00
CAD$23.00 - CAD$23.00
CAD$23.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M2
  • Ball Size: 1.0 mm Ball
  • Ball Material: Ruby
  • Stem Length: 10.0 mm
  • Stem Material: Steel
  • Effective Working Length: 5.0 mm

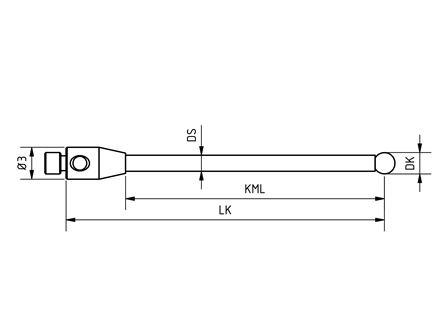

  • DK: 1.0 mm
  • LK: 10.0 mm
  • KML: 5.0 mm
  • DS: 0.7 mm
