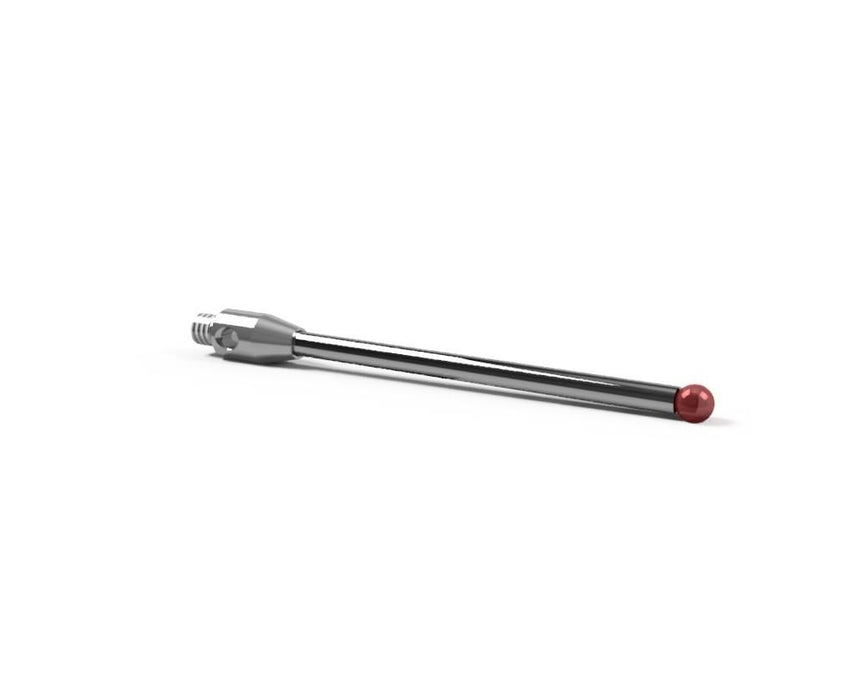

SM2 020 010 RCA - Straight M2 CMM Stylus 2mm Ruby Ball, 10mm Tungsten Carbide Stem, EWL 5mm

SM2 020 010 RCA - Straight M2 CMM Stylus 2mm Ruby Ball, 10mm Tungsten Carbide Stem, EWL 5mm

CAD$26.00 - CAD$26.00
CAD$26.00
CAD$26.00 - CAD$26.00
CAD$26.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M2
  • Ball Size: 2 mm Ball
  • Ball Material: Ruby
  • Stem Length: 10 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 5 mm

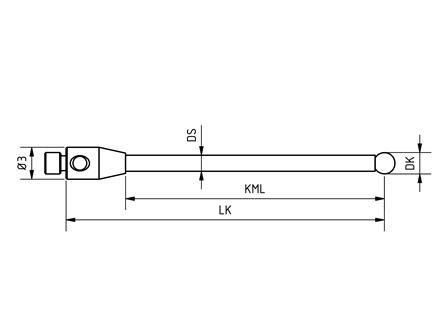

  • DK: 2 mm
  • LK: 10 mm
  • KML: 5 mm
  • DS: 1 mm
  • Tungsten carbide shafts offers outstanding rigidity
  • Especially suited for small ball diameters and shafts.
