SM2 020 030 RCA - Straight M2 CMM Stylus 2mm Ruby Ball, 30mm Tungsten Carbide Stem, EWL 24mm

SM2 020 030 RCA - Straight M2 CMM Stylus 2mm Ruby Ball, 30mm Tungsten Carbide Stem, EWL 24mm

$36.00 - $36.00
$36.00
$36.00 - $36.00
$36.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021

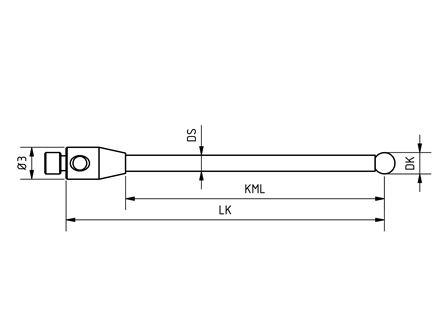

  • Thread Size: M2
  • Ball Size: 2 mm Ball
  • Ball Material: Ruby
  • Stem Length: 30 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 24 mm
  • DK: 2 mm
  • LK: 30 mm
  • KML: 24 mm
  • DS: 1.5 mm

Equivalent to:

  • Renishaw A-5003-0036
  • QMark TM2-2030
  • ITP TH M2 020 03 031
  • Hexagon 3969262
