SM2 025 040 RCA - Straight M2 CMM Stylus 2.5mm Ruby Ball, 40mm Tungsten Carbide Stem, EWL 34mm

SM2 025 040 RCA - Straight M2 CMM Stylus 2.5mm Ruby Ball, 40mm Tungsten Carbide Stem, EWL 34mm

CAD$41.00 - CAD$41.00
CAD$41.00
CAD$41.00 - CAD$41.00
CAD$41.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M2
  • Ball Size: 2.5 mm Ball
  • Ball Material: Ruby
  • Stem Length: 40 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 34 mm

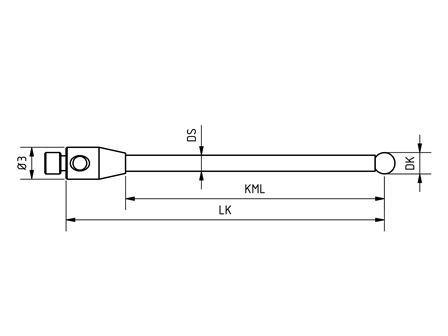

  • DK: 2.5 mm
  • LK: 40 mm
  • KML: 34 mm
  • DS: 1.5 mm

 Equivalent to:

  • Renishaw A-5003-0039
  • QMark TM2-2540
  • ITP TH M2 025 03 041
