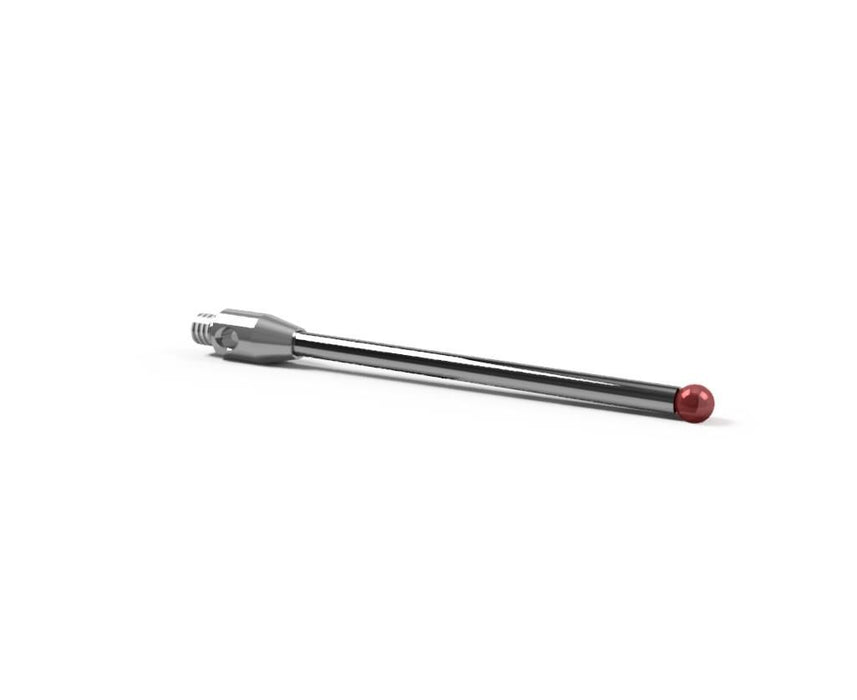

SM2 040 020 RSS - Straight M2 CMM Stylus 4mm Ruby Ball, 20mm Steel Stem, EWL 20mm

SM2 040 020 RSS - Straight M2 CMM Stylus 4mm Ruby Ball, 20mm Steel Stem, EWL 14mm

$37.00 - $37.00
$37.00
$37.00 - $37.00
$37.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M2
  • Ball Size: 4 mm Ball
  • Ball Material: Ruby
  • Stem Length: 20 mm
  • Stem Material: Stainless Steel
  • Effective Working Length: 14 mm

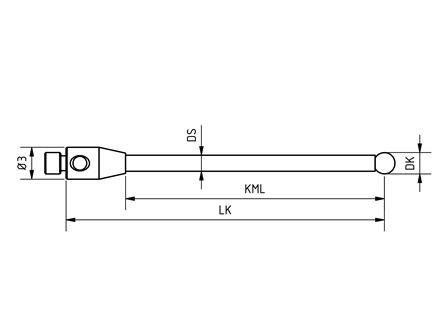

  • DK: 4 mm
  • LK: 20 mm
  • KML: 14 mm
  • DS: 2 mm

Equivalent to:

  • Renishaw A-5000-4161
  • QMark TM2-4022-S
  • ITP TI M2 040 03 022
  • Hexagon 3969214
