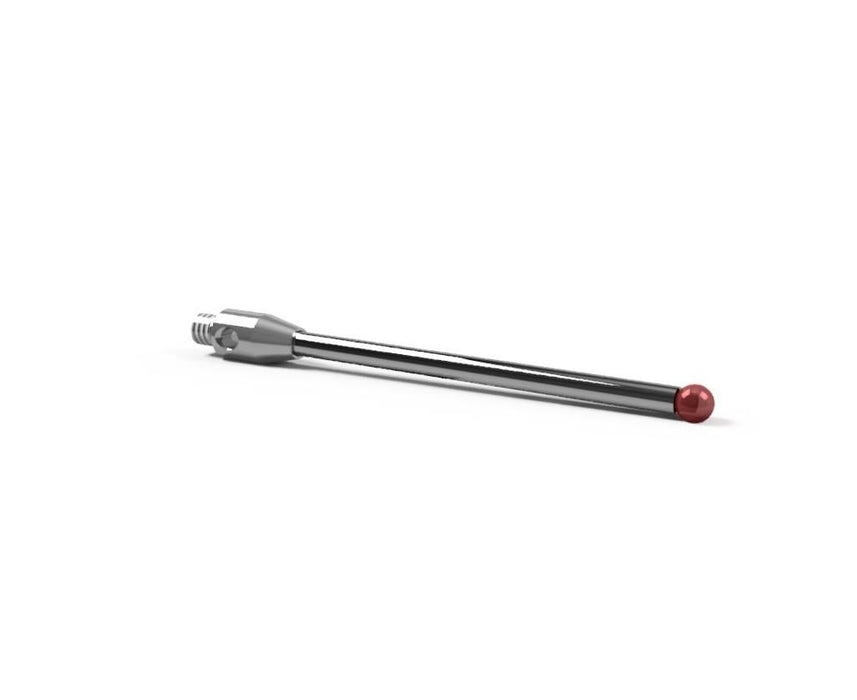

SM2 050 010 RCA - Straight M2 CMM Stylus 5mm Ruby Ball, 10mm Tungsten Carbide Stem, EWL 4mm

SM2 050 010 RCA - Straight M2 CMM Stylus 5mm Ruby Ball, 10mm Tungsten Carbide Stem, EWL 4mm

CAD$48.00 - CAD$48.00
CAD$48.00
CAD$48.00 - CAD$48.00
CAD$48.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M2
  • Ball Size: 5 mm Ball
  • Ball Material: Ruby
  • Stem Length: 10 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 4 mm

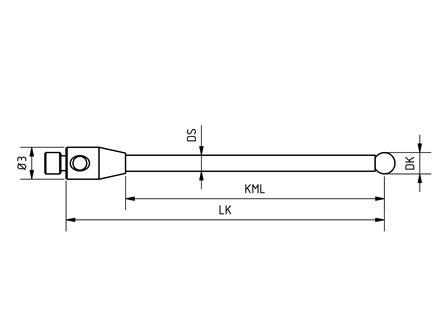

  • DK: 5 mm
  • LK: 10 mm
  • KML: 4 mm
  • DS: 2 mm

 Equivalent to:

  • Renishaw A-5000-4155
  • QMark TM2-5010
