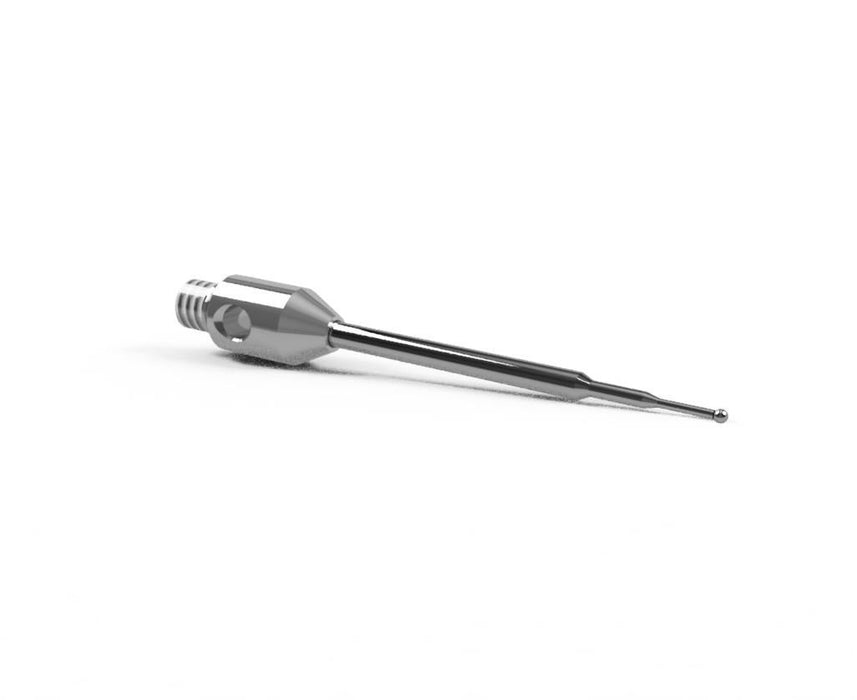

SM2 M03 010 CCA - Stepped Micro M2 CMM Stylus 0.3 mm Carbide Ball, 10 mm Tungsten Carbide Stem, EWL 5 mm

• Thread Size: M2
• Ball Size: 0.3 mm Ball
• Ball Material: Carbide
• Stem Length: 10 mm
• Stem Material: Tungsten Carbide
• Effective Working Length: 5 mm

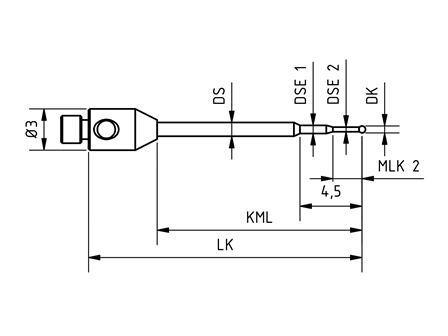

• DK: 0.3 mm
• LK: 10 mm
• KML: 5 mm
• MLK: 4.5/1.1 mm
• DS: 1 mm
• DSE1/2: 0.5/0.23 mm

Equivalent to:

• Renishaw A-5000-7800
• QMark TM2-0310-C
• Hexagon 3969268 RUBY
