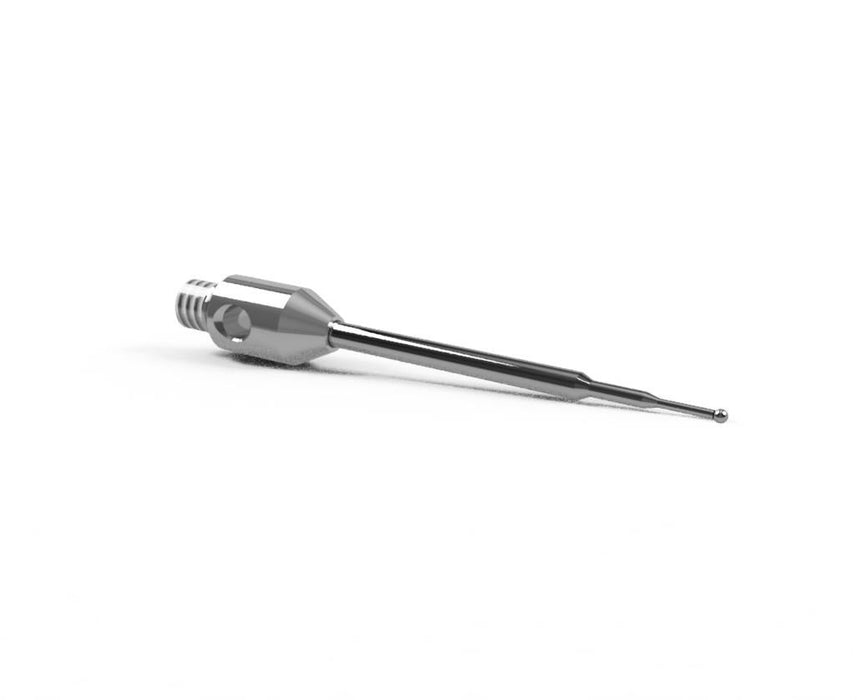

SM2 M03 020 CCA - Stepped Micro M2 CMM Stylus 0.3 mm Carbide Ball, 20 mm Tungsten Carbide Stem, EWL 1.1mm

SM2 M03 020 CCA - Stepped Micro M2 CMM Stylus 0.3 mm Carbide Ball, 20 mm Tungsten Carbide Stem, EWL 15 mm

$88.00 - $88.00
$88.00
$88.00 - $88.00
$88.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M2
  • Ball Size: 0.3 mm Ball
  • Ball Material: Carbide
  • Stem Length: 20 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 15 mm

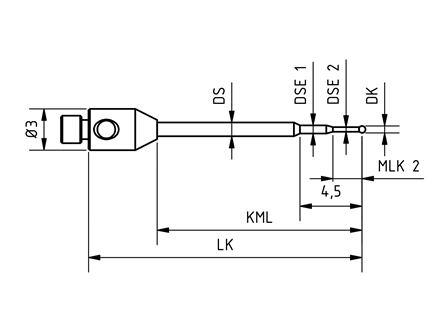

  • DK: 0.3 mm
  • LK: 20 mm
  • KML: 15 mm
  • MLK: 4.5/1.1 mm
  • DS: 1 mm
  • DSE1/2: 0.5/0.23 mm

Equivalent to:

  • Renishaw A-5004-7398
