SM2 M03 015 RCA - Stepped Micro M2 CMM Stylus 0.3mm Ruby Ball, 15mm Tungsten Carbide Stem, EWL 10mm

SM2 M03 015 RCA - Stepped Micro M2 CMM Stylus 0.3mm Ruby Ball, 15mm Tungsten Carbide Stem, EWL 10mm

$80.00 - $80.00
$80.00
$80.00 - $80.00
$80.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M2
  • Ball Size: 0.3 mm Ball
  • Ball Material: Ruby
  • Stem Length: 15 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 10 mm

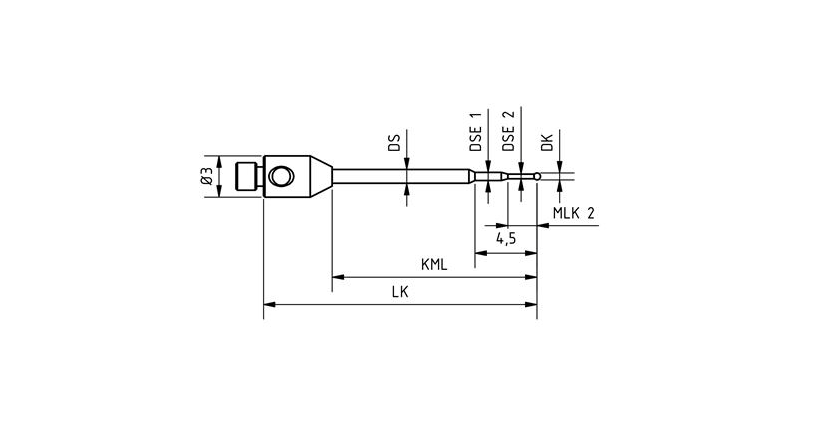

  • DK: 0.3 mm
  • LK: 15 mm
  • KML: 10 mm
  • MLK: 4.5 / 1.1 mm
  • DS: 1 mm
  • DSE1/2: 0.5 / 0.23 mm
