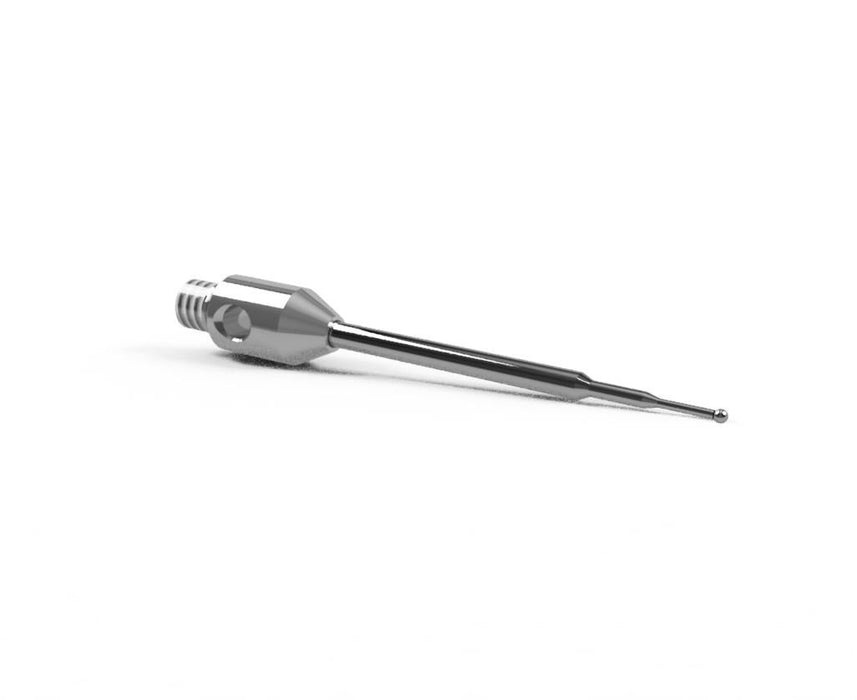

SM2 M05 020 CCA - Stepped Micro M2 CMM Stylus 0.5mm Carbide Ball, 20mm Tungsten Carbide Stem, EWL 2.3mm

SM2 M05 020 CCA - Stepped Micro M2 CMM Stylus 0.5mm Carbide Ball, 20mm Tungsten Carbide Stem, EWL 15mm

$83.00 - $83.00
$83.00
$83.00 - $83.00
$83.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M2
  • Ball Size: 0.5 mm Ball
  • Ball Material: Carbide
  • Stem Length: 15 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 15 mm

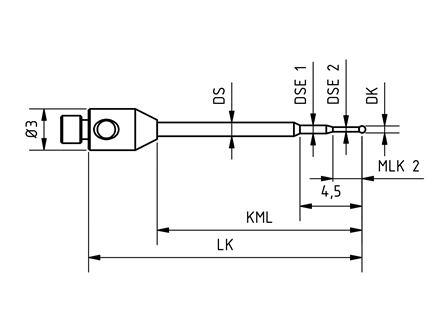

  • DK: 0.5 mm
  • LK: 20 mm
  • KML: 15 mm
  • MLK: 4.5 / 2.3 mm
  • DS: 1 mm
  • DSE1/2: 0.6 / 0.32 mm

Equivalent to:

  • QMark TM2-0520-C
