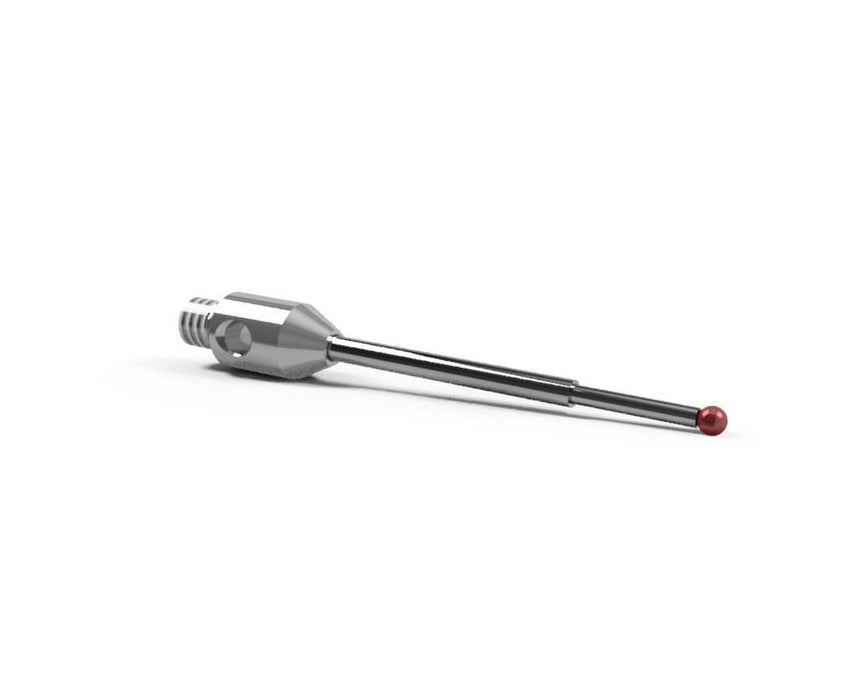

SM2 M06 010 RCA - Stepped M2 CMM Stylus 0.6mm Ruby Ball, 10mm Tungsten Carbide Stem, EWL 4mm

SM2 M06 010 RCA - Stepped Micro M2 CMM Stylus 0.6mm Ruby Ball, 10mm Tungsten Carbide Stem, EWL 5mm

CAD$65.00 - CAD$65.00
CAD$65.00
CAD$65.00 - CAD$65.00
CAD$65.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M2
  • Ball Size: 0.6 mm Ball
  • Ball Material: Ruby
  • Stem Length: 10 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 5 mm

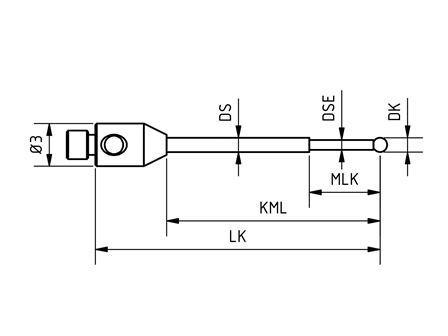

  • DK: 0.6 mm
  • LK: 10 mm
  • KML: 5 mm
  • MLK: 4 mm
  • DS: 1 mm
  • DSE: 0.4 mm

Equivalent to:

  • Zeiss 626112-0060-014
  • QMark TM2-0610
