SM2 S10 020 RCA - Stepped Micro M2 CMM Stylus 1mm Ruby Ball, 20mm Tungsten Carbide Stem, EWL 15mm

• Thread Size: M2
• Ball Size: 1 mm Ball
• Ball Material: Ruby
• Stem Length: 20 mm
• Stem Material: Tungsten Carbide
• Effective Working Length: 15 mm

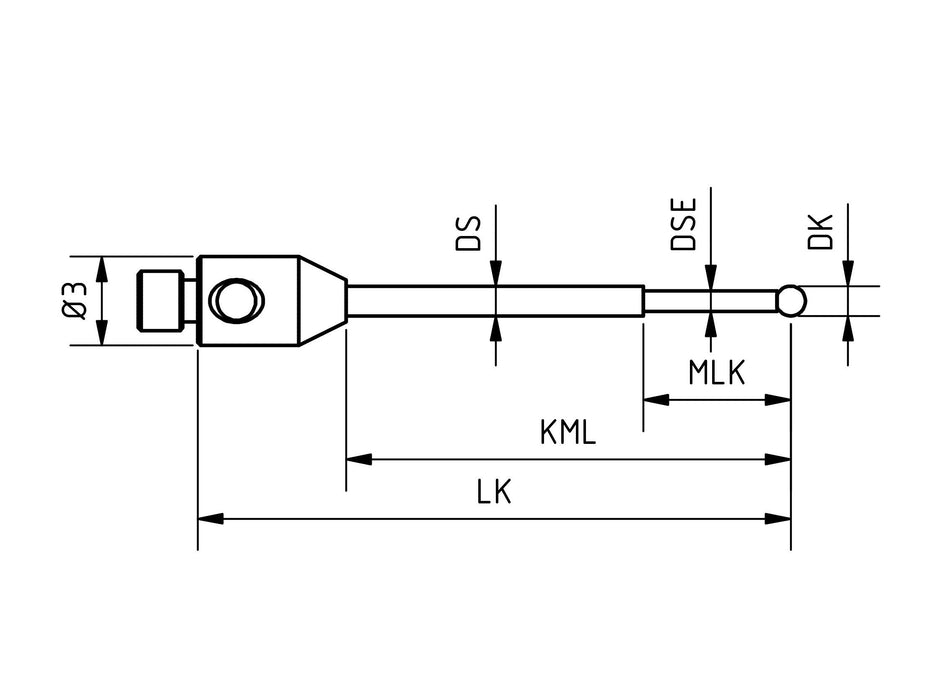

• DK: 1 mm
• LK: 20 mm
• KML: 15 mm
• MLK: 5 mm
• DS: 1 mm
• DSE: 0.7 mm

 Equivalent to:

• Zeiss 626112-0101-020
• Renishaw A-5003-0033
• QMark TM2-1020
• ITP TH M2 010 03 020
• Hexagon 3969271
