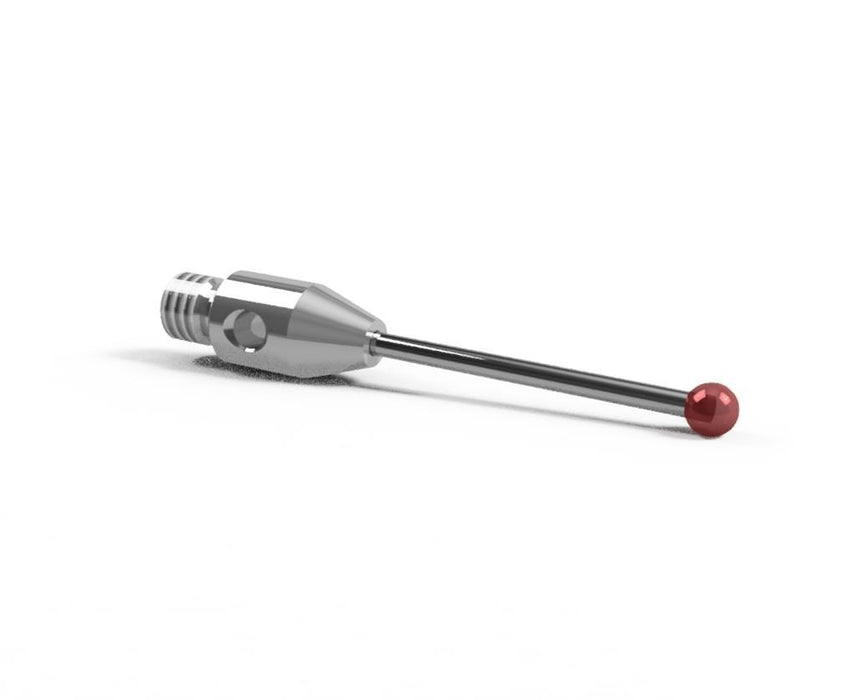

SM3 010 010 RCA - Straight M3 CMM Stylus, Ø1mm Ruby Ball, 10mm Tungsten Carbide Stem, EWL 3 mm

SM3 010 010 RCA - Straight M3 CMM Stylus, Ø1mm Ruby Ball, 10mm Tungsten Carbide Stem, EWL 3mm

CAD$44.00 - CAD$44.00
CAD$44.00
CAD$44.00 - CAD$44.00
CAD$44.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M3
  • Ball Size: 1 mm Ball
  • Ball Material: Ruby
  • Stem Length: 10 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 3 mm

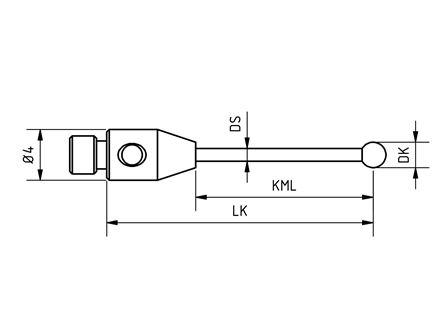

  • DK: 1 mm
  • LK: 10 mm
  • KML: 3 mm
  • DS: 0.7 mm

 Equivalent to:

  • Zeiss 602030-8120-000
  • Renishaw A-5004-7401
  • QMark TM3-1010-DS.7
  • ITP TH M3 010 04 010
