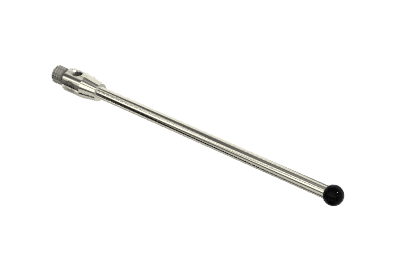

SM3 010 030 SCA - Straight M3 CMM Stylus, Ø1.0mm Silicone Ball, 30mm Tungsten Carbide Stem, EWL 23 mm

SM3 010 030 SCA - Straight M3 CMM Stylus, Ø1.0mm Silicone Ball, 30mm Tungsten Carbide Stem, EWL 23 mm

CAD$112.00 - CAD$112.00
CAD$112.00
CAD$112.00 - CAD$112.00
CAD$112.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M3
  • Ball Size: 1 mm Ball
  • Ball Material: Silicone Nitrite
  • Stem Length: 30 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 23 mm

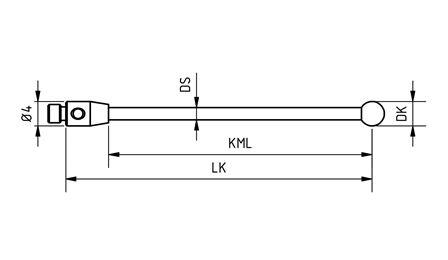

  • DK: 1 mm
  • LK: 30 mm
  • KML: 23 mm
  • DS: 0.7 mm
