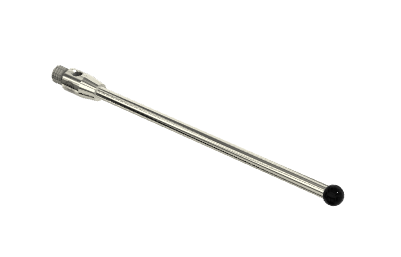

SM3 030 050 SCA - Straight M3 CMM Stylus, 3mm Silicon Nitride Ball, 50mm Tungsten Carbide Stem, 43mm EWL

SM3 030 050 SCA - Straight M3 CMM Stylus, 3mm Silicon Nitride Ball, 50mm Tungsten Carbide Stem, 43mm EWL

CAD$71.00 - CAD$71.00
CAD$71.00
CAD$71.00 - CAD$71.00
CAD$71.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M3
  • Ball Size: 3 mm Ball
  • Ball Material: Silicon Nitride
  • Stem Length: 50 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 43 mm

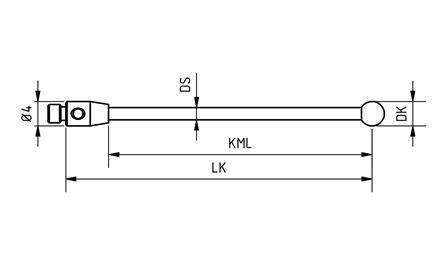

  • DK: 3 mm
  • LK: 50 mm
  • KML: 43 mm
  • DS: 2 mm

Equivalent to:

  • QMark TM3-3051.5-SN
  • ITP TH M3 S30 04 051
