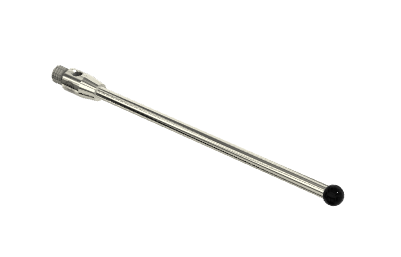

SM3 030 085 SCA - Straight M3 CMM Stylus, 3mm Silicon Nitride Ball, 85mm Tungsten Carbide Stem, 78mm EWL

SM3 030 085 SCA - Straight M3 CMM Stylus, 3mm Silicon Nitride Ball, 85mm Tungsten Carbide Stem, 78mm EWL

$80.00 - $80.00
$80.00
$80.00 - $80.00
$80.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M3
  • Ball Size: 3 mm Ball
  • Ball Material: Silicon Nitride
  • Stem Length: 85 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 78 mm
  • DK: 3 mm
  • LK: 85 mm
  • KML: 78 mm
  • DS: 2 mm

Equivalent to:

  • QMark TM3-3085-SN
