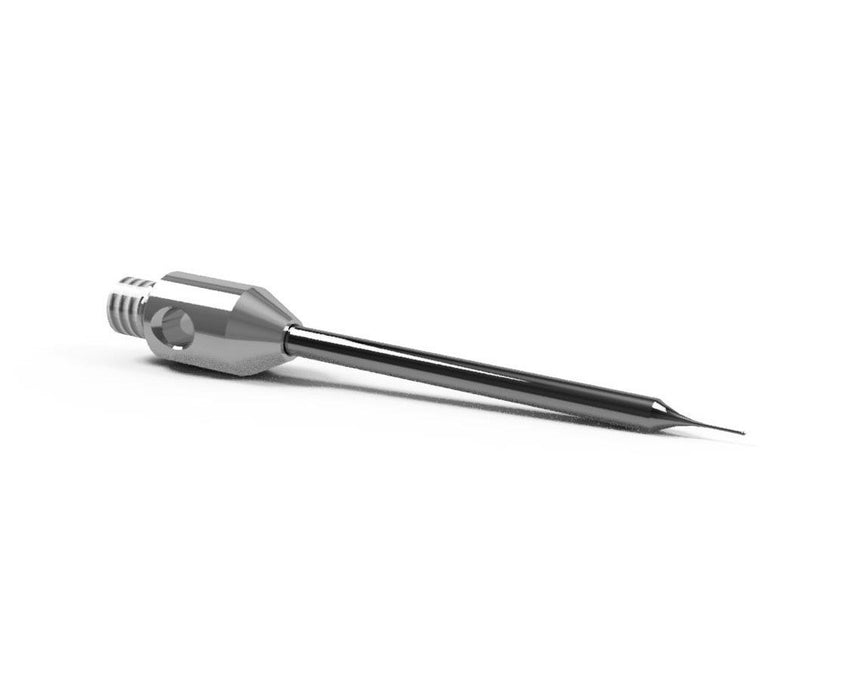

SM3 M01 022 CCA - Stepped Micro M3 CMM Stylus 0.10mm Carbide Ball, 22mm Tungsten Carbide Stem, EWL 15mm

SM3 M01 022 CCA - Stepped Micro M3 CMM Stylus 0.10mm Carbide Ball, 22mm Tungsten Carbide Stem, EWL 15mm

$314.00 USD - $314.00 USD
$314.00 USD
$314.00 USD - $314.00 USD
$314.00 USD
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021

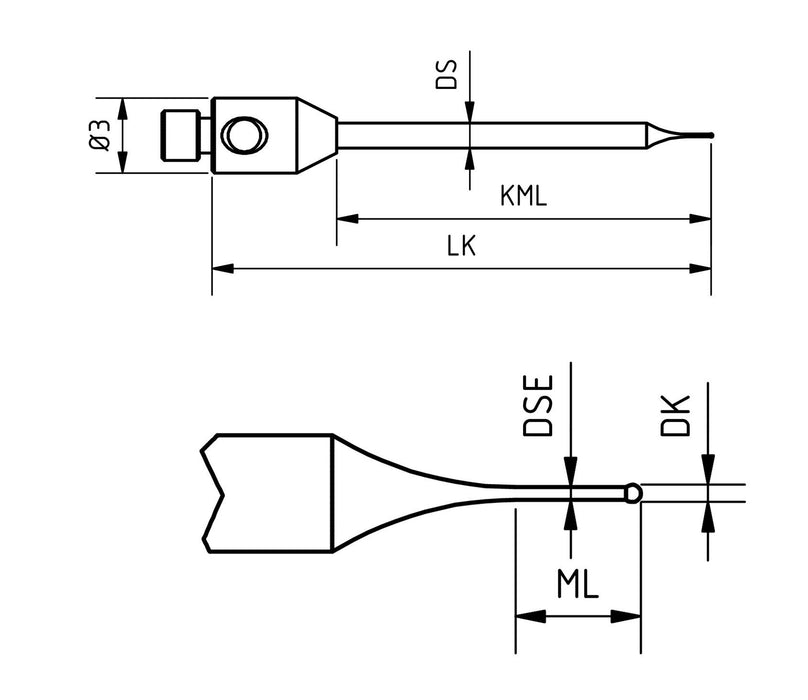

  • Thread Size: M3
  • Ball Size: 0.1 mm Ball
  • Ball Material: Carbide
  • Stem Length: 22.0 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 15.0 mm
  • DK: 0.1 mm
  • LK: 22.0 mm
  • KML: 15.0 mm
  • MLK: 1.0 mm
  • DS: 1.0 mm
  • DSE: 0.07 mm
