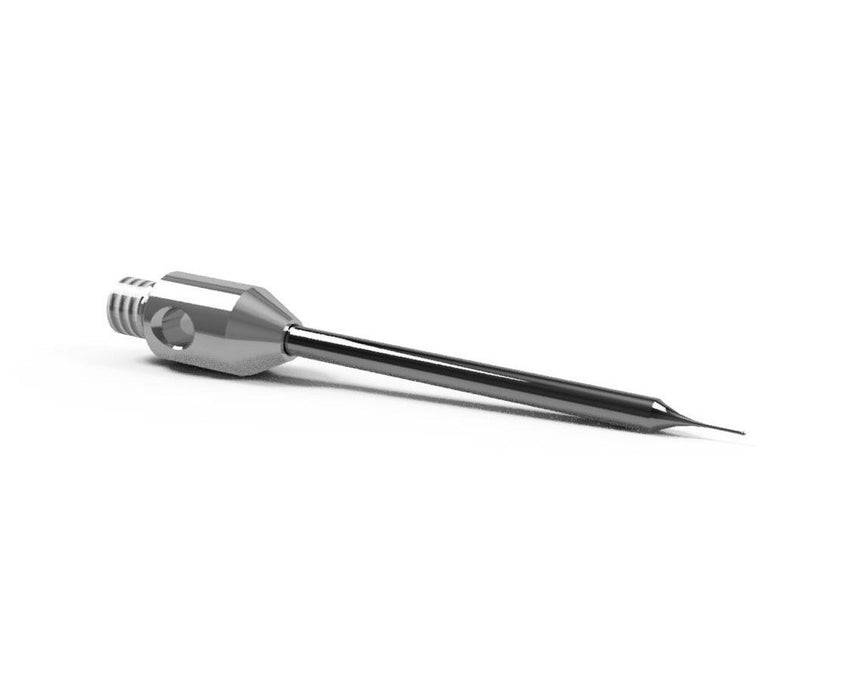

SM3 M012 022 CCA - Stepped Micro M3 CMM Stylus 0.12mm Carbide Ball, 22mm Tungsten Carbide Stem, EWL 15mm

SM3 M012 022 CCA - Stepped Micro M3 CMM Stylus, 0.12mm Carbide Ball, 22mm Tungsten Carbide Stem, EWL 15mm

$313.00 - $313.00
$313.00
$313.00 - $313.00
$313.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M3
  • Ball Size: 0.12 mm Ball
  • Ball Material: Carbide
  • Stem Length: 22 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 15 mm

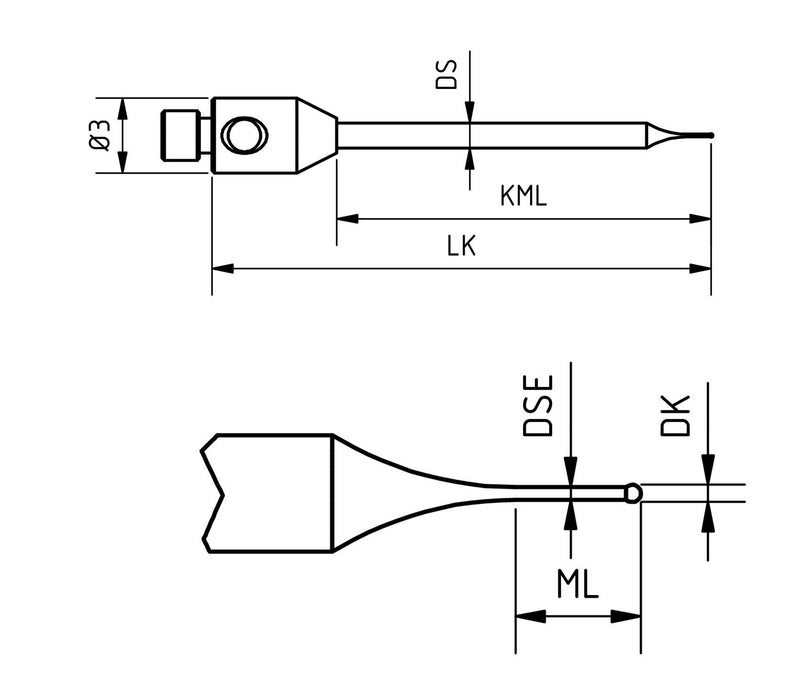

  • DK: 0.12 mm
  • LK: 22 mm
  • KML: 15 mm
  • ML: 1 mm
  • DS: 1 mm
  • DSE: 0.09 mm
