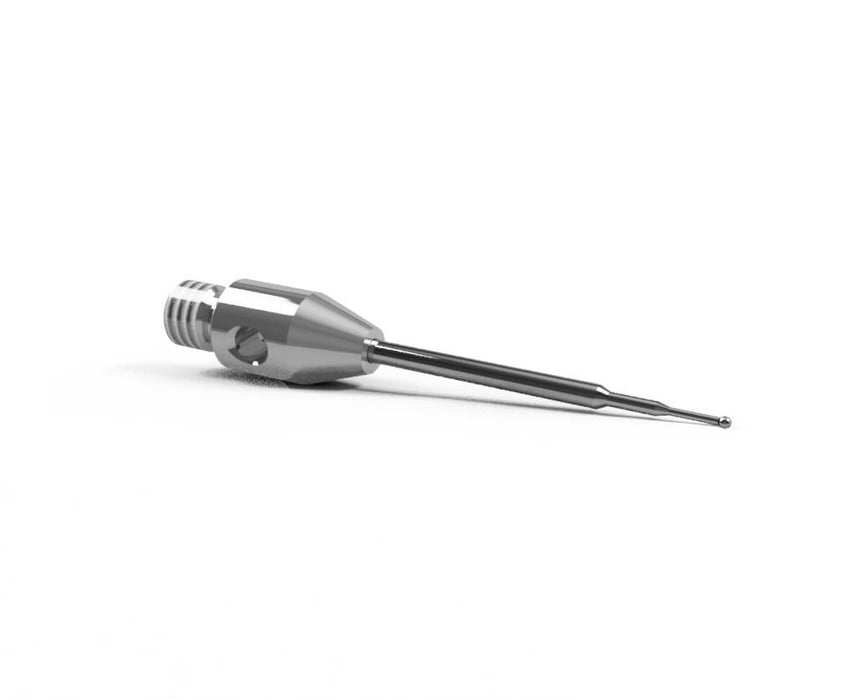

SM3 M02 022 CCA - Stepped Micro M3 CMM Stylus 0.2mm Carbide Ball, 22mm Tungsten Carbide Stem, EWL 15mm

SM3 M02 022 CCA - Stepped Micro M3 CMM Stylus, 0.2mm Carbide Ball, 22mm Tungsten Carbide Stem, EWL 15mm

CAD$215.00 - CAD$215.00
CAD$215.00
CAD$215.00 - CAD$215.00
CAD$215.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M3
  • Ball Size: 0.2 mm Ball
  • Ball Material: Carbide
  • Stem Length: 22 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 15 mm

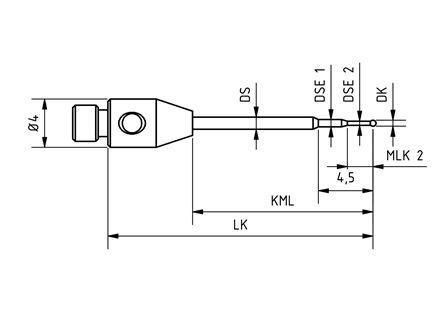

  • DK: 0.2 mm
  • LK: 22 mm
  • KML: 15 mm
  • MLK1/2: 4.5 / 0.9 mm
  • DS: 1 mm
  • DSE1/2: 0.5 / 0.17 mm
