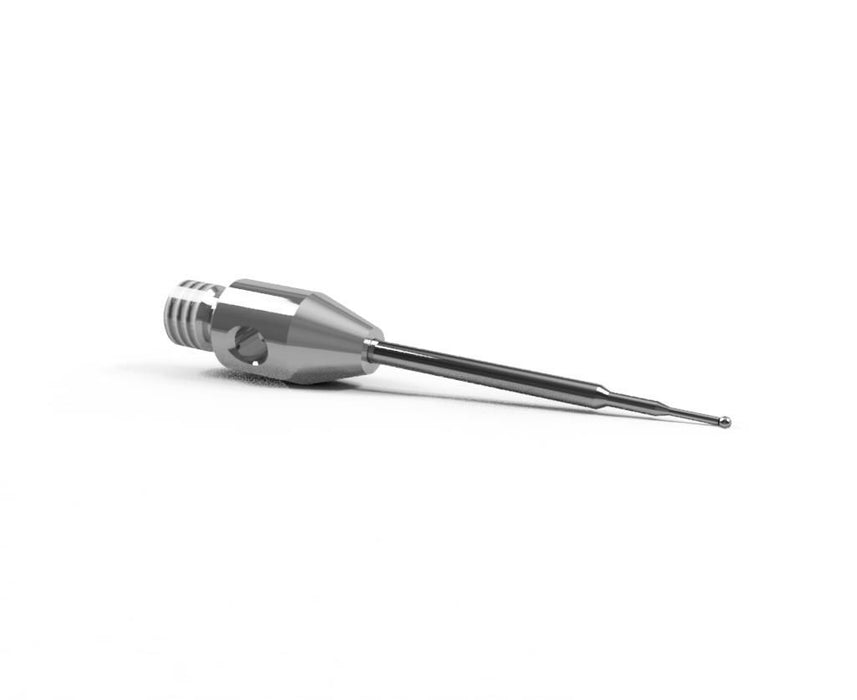

SM3 M03 022 CCA - Stepped Micro M3 CMM Stylus 0.3mm Carbide Ball, 22mm Tungsten Carbide Stem, EWL 15mm

SM3 M03 022 CCA - Stepped Micro M3 CMM Stylus, 0.3mm Carbide Ball, 22mm Tungsten Carbide Stem, EWL 15mm

CAD$115.00 - CAD$115.00
CAD$115.00
CAD$115.00 - CAD$115.00
CAD$115.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M3
  • Ball Size: 0.3 mm Ball
  • Ball Material: Carbide
  • Stem Length: 22 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 15 mm

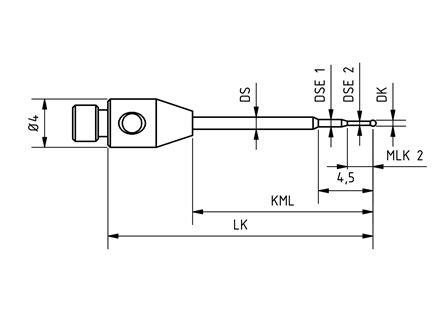

  • DK: 0.3 mm
  • LK: 22 mm
  • KML: 15 mm
  • MLK1/2: 4.5 / 1.1 mm
  • DS: 1 mm
  • DSE1/2: 0.5 / 0.23 mm

 Equivalent to:

  • QMark TM3-0320-C
