SM3 M05 022 RCA - Stepped Micro M3 CMM Stylus 0.5mm Ruby Ball, 22mm Tungsten Carbide Stem, EWL 15mm

SM3 M05 022 RCA - Stepped Micro M3 CMM Stylus 0.5mm Ruby Ball, 22mm Tungsten Carbide Stem, EWL 15mm

CAD$59.00 - CAD$59.00
CAD$59.00
CAD$59.00 - CAD$59.00
CAD$59.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021

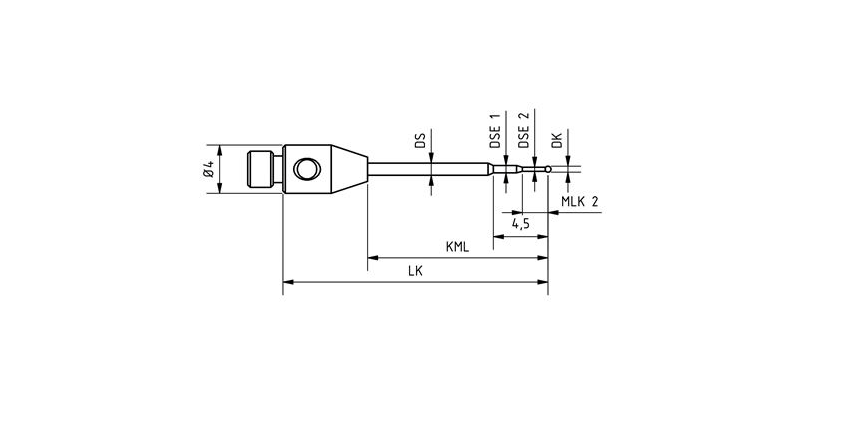

CMM Stylus Dimensions:

  • Thread Size: M3
  • Ball Size (DK): 0.5 mm
  • Ball Material: Ruby
  • Stem Length (LK): 22.0 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length (KML): 15.0 mm
  • MLK1/2: 4.5 mm / 2.3 mm
  • Stem Diameter (DS): 1.0 mm
  • DSE1/2: 0.6 / 0.32 mm

    CMM Stylus Information:

    • Application: CMM Part Inspection
    • Part Number: SM3 M05 022 RCA
    • Country Of Origin: Germany
    • Brand: GOEKELER
    • Condition: New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable)
