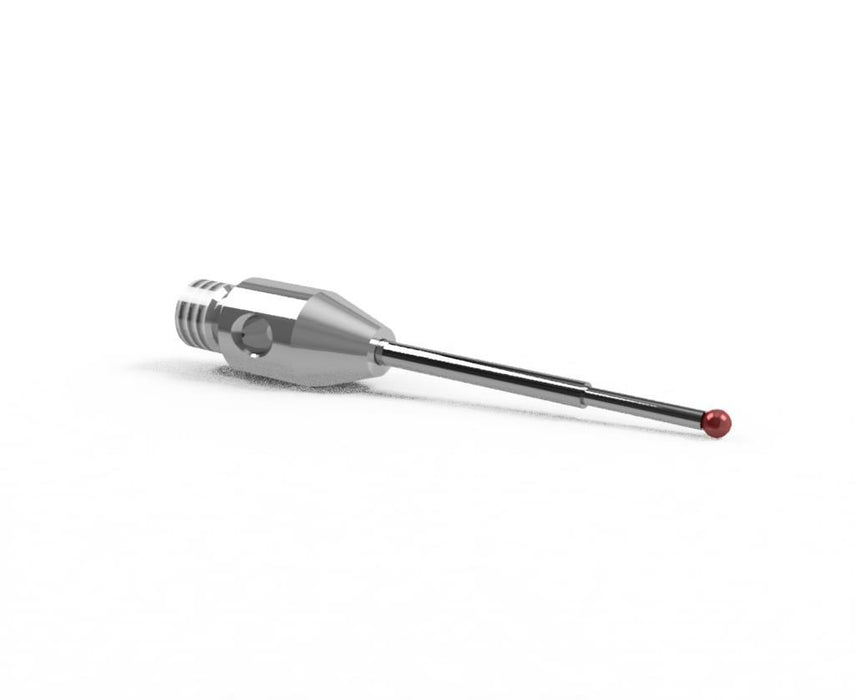

SM3 S08 022 RCA - Stepped M3 CMM Stylus 0.8mm Ruby Ball, 22mm Tungsten Carbide Stem, EWL 15mm

SM3 S08 022 RCA - Stepped Micro M3 CMM Stylus, 0.8mm Ruby Ball, 22mm Tungsten Carbide Stem, EWL 15mm

$37.00 - $37.00
$37.00
$37.00 - $37.00
$37.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M3
  • Ball Size: 0.8 mm Ball
  • Ball Material: Ruby
  • Stem Length: 22 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 15 mm

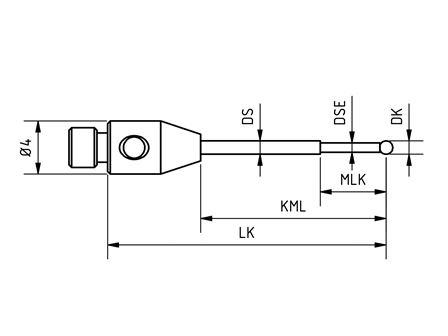

  • DK: 0.8 mm
  • LK: 22 mm
  • KML: 15 mm
  • MLK: 4 mm
  • DS: 1 mm
  • DSE: 0.5 mm

Equivalent to:

  • Zeiss 602030-8117-000
  • QMark TM3-0822
  • ITP TH M3 008 04 022
