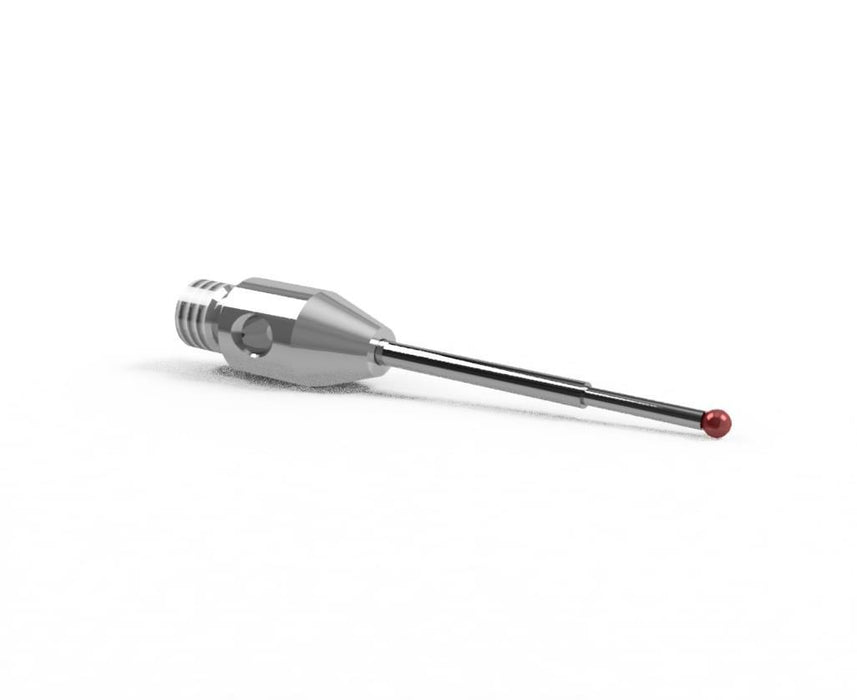

SM3 S10 015 RCA - Stepped M3 CMM Stylus 1.0mm Ruby Ball, 15mm Tungsten Carbide Stem, EWL 8mm

SM3 S10 015 RCA - Stepped M3 CMM Stylus, 1mm Ruby Ball, 15mm Tungsten Carbide Stem, EWL 8mm

CAD$51.00 - CAD$51.00
CAD$51.00
CAD$51.00 - CAD$51.00
CAD$51.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M3
  • Ball Size: 1 mm Ball
  • Ball Material: Ruby
  • Stem Length: 15 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 8 mm

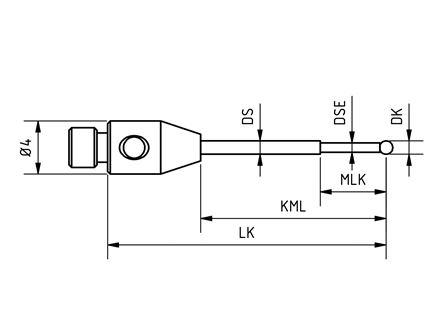

  • DK: 1 mm
  • LK: 15 mm
  • KML: 8 mm
  • MLK: 5 mm
  • DS: 1 mm
  • DSE: 0.7 mm

Equivalent to:

  • QMark TM3-1015
