SM3 S15 030 RCA - Stepped Micro M3 CMM Stylus, 1.5mm Ruby Ball, 30mm Tungsten Carbide Stem, EWL 23mm

SM3 S15 030 RCA - Stepped Micro M3 CMM Stylus, 1.5mm Ruby Ball, 30mm Tungsten Carbide Stem, EWL 23mm

$40.00 - $40.00
$40.00
$40.00 - $40.00
$40.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M3
  • Ball Size: 1.5 mm Ball
  • Ball Material: Ruby
  • Stem Length: 30 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 23 mm

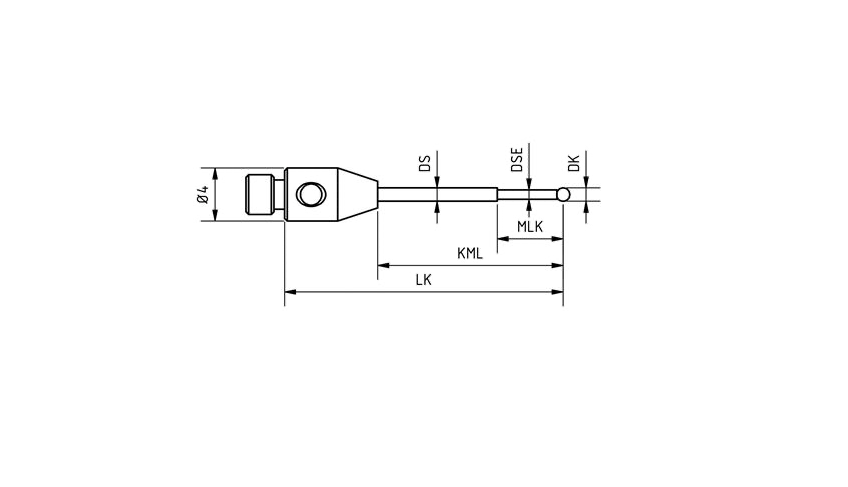

  • DK: 1.5 mm
  • LK: 30 mm
  • KML: 23 mm
  • MLK: 8 mm
  • DS: 1.5 mm
  • DSE: 1 mm
