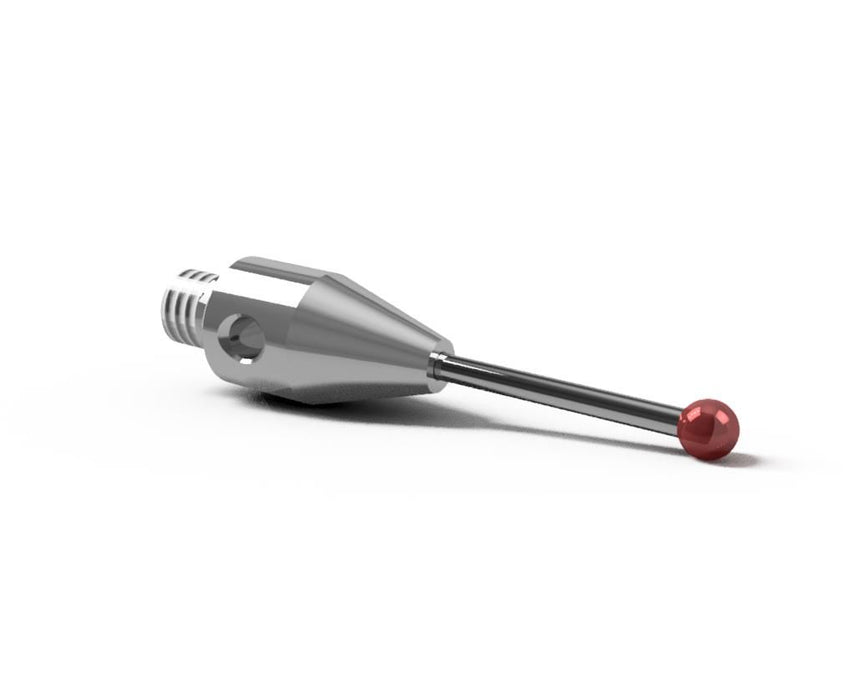

SM3 X10 020 RCA - Straight M3 XXT CMM Stylus 1.0mm Ruby Ball, 20mm Tungsten Carbide Stem, EWL 11mm

SM3 X10 020 RCA - Straight M3 XXT CMM Stylus, 1mm Ruby Ball, 20mm Tungsten Carbide Stem, 11mm EWL

$63.00 - $63.00
$63.00
$63.00 - $63.00
$63.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M3 XXT
  • Ball Size: 1 mm Ball
  • Ball Material: Ruby
  • Stem Length: 20 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 11 mm

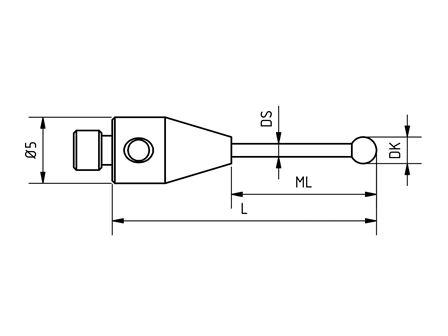

  • DK: 1 mm
  • L: 20 mm
  • ML: 11 mm
  • DS: 0.8 mm

Equivalent to:

  • Zeiss 626113-0103-020
  • QMark TM3-1020-TX-8
  • ITP TH M3 010 05 020/0
