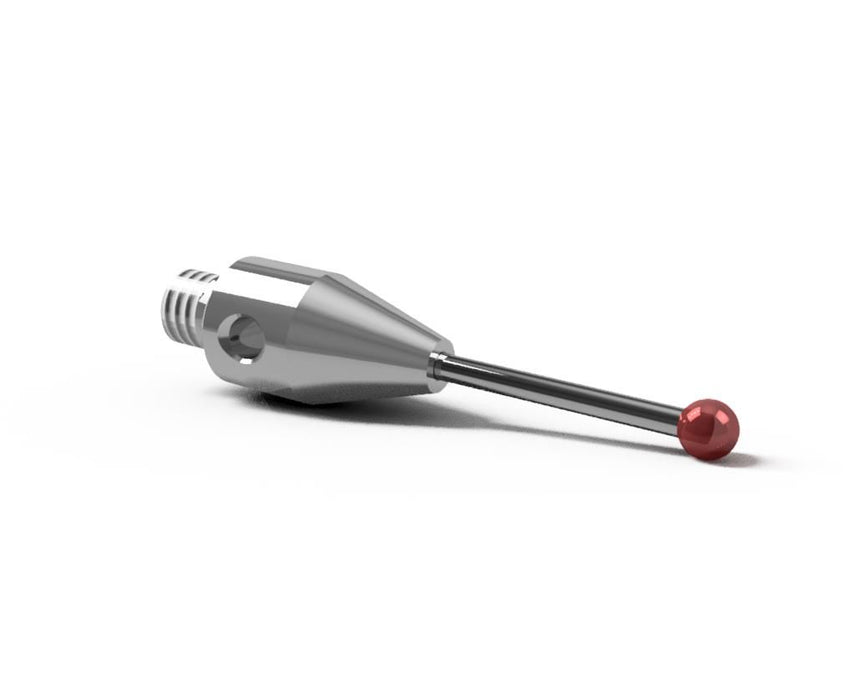

SM3 X25 040 RCA - Straight M3 XXT CMM Stylus 2.5mm Ruby Ball, 40mm Tungsten Carbide Stem, EWL 31mm

SM3 X25 040 RCA - Straight M3 XXT CMM Stylus, 2.5mm Ruby Ball, 40mm Tungsten Carbide Stem, 31mm EWL

$46.00 - $46.00
$46.00
$46.00 - $46.00
$46.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M3 XXT
  • Ball Size: 2.5 mm Ball
  • Ball Material: Ruby
  • Stem Length: 40 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 31 mm

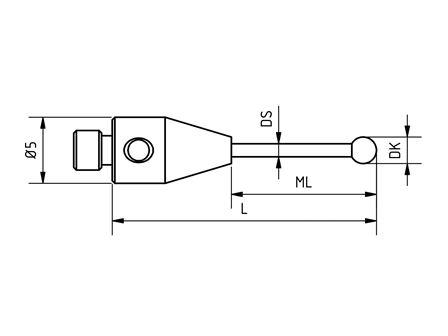

  • DK: 2.5 mm
  • L: 40 mm
  • ML: 31 mm
  • DS: 1.5 mm

Equivalent to:

  • Zeiss 626113-0250-040
  • QMark TM3-2540-TX
  • ITP TH M3 025 05 040
