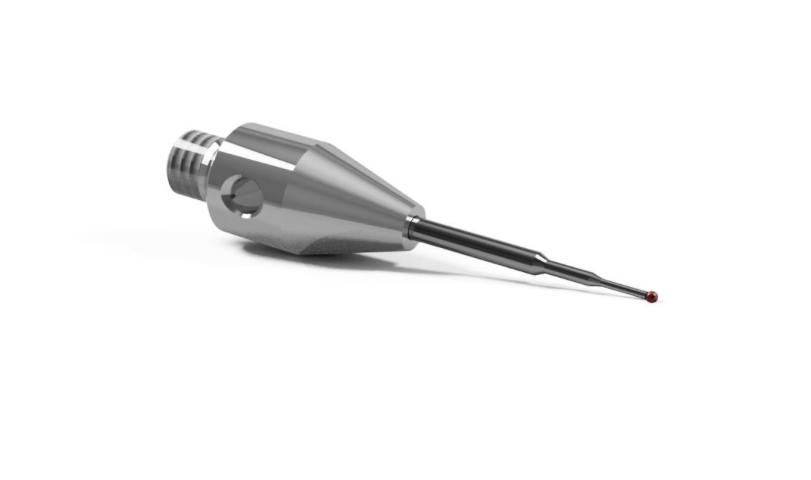

SM3 XS03 020 RCA - Stepped M3 XXT CMM Stylus, 0.3mm Ruby Ball, 20mm Tungsten Carbide Stem, 11mm EWL

SM3 XS03 020 RCA - Stepped M3 XXT CMM Stylus, 0.3mm Ruby Ball, 20mm Tungsten Carbide Stem, 11mm EWL

$72.00 - $72.00
$72.00
$72.00 - $72.00
$72.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M3 XXT
  • Ball Size: 0.3 mm Ball
  • Ball Material: Ruby
  • Stem Length: 20 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 11 mm

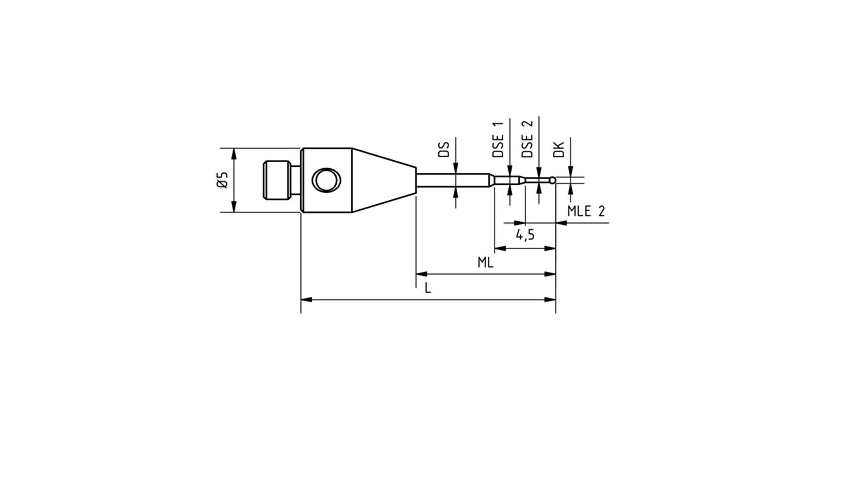

  • DK: 0.3 mm
  • L: 20 mm
  • ML: 11 mm
  • MLE1/2: 4.5 / 1.3 mm
  • DS: 1 mm
  • DSE1/2: 0.5 / 0.23 mm
