SM3 XS05 020 RCA - Stepped M3 XXT CMM Stylus, 0.5mm Carbide Ball, 20mm Tungsten Carbide Stem, 11mm EWL

SM3 XS05 020 RCA - Stepped M3 XXT CMM Stylus, 0.5mm Carbide Ball, 20mm Tungsten Carbide Stem, 11mm EWL

$74.00 - $74.00
$74.00
$74.00 - $74.00
$74.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M3 XXT
  • Ball Size: 0.5 mm Ball
  • Ball Material: Ruby
  • Stem Length: 20 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 11 mm

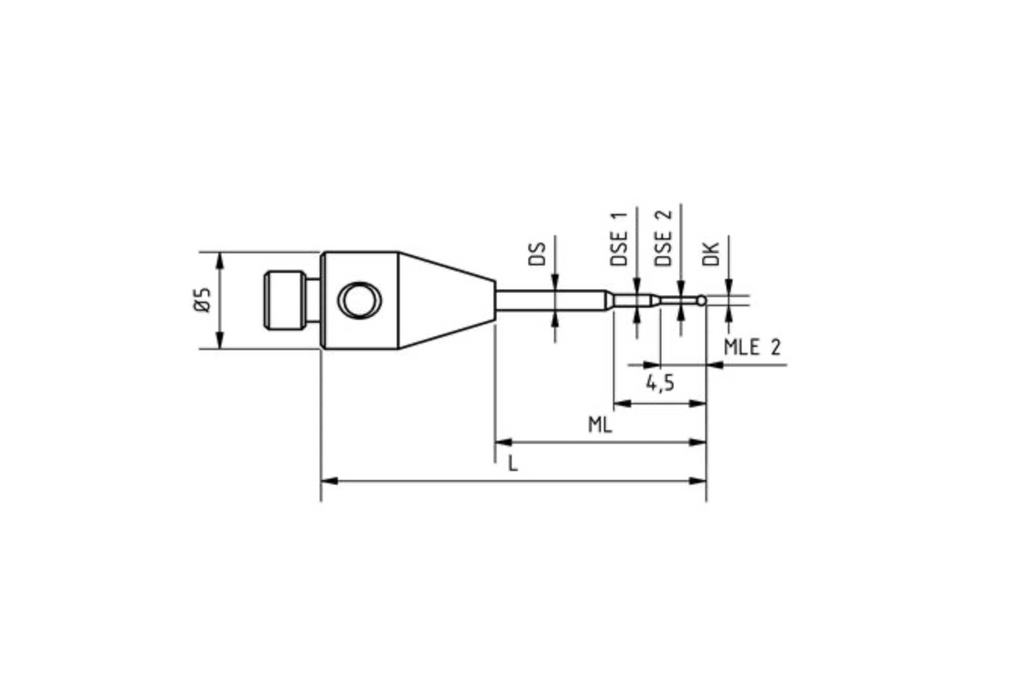

  • DK: 0.5 mm
  • L: 20 mm
  • ML: 11 mm
  • MLE1/2: 4.5 / 2.6 mm
  • DS: 1 mm
  • DSE1/2: 0.6 / 0.32 mm

Equivalent to:

  • Zeiss 626113-0050-020
  • QMark TM3-0520-TX
  • ITP TH M3 005 05 020
