SM4 010 030 SCA - Straight M4 CMM Stylus 1mm Silicone nitride Ball, 30mm Tungsten Carbide Stem, EWL 18mm

SM4 010 030 SCA - Straight M4 Stylus, 1mm Silicon Nitride Ball, 30mm Tungsten Carbide Stem, 18mm EWL

$86.00 - $86.00
$86.00
$86.00 - $86.00
$86.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M4
  • Ball Size: 1 mm
  • Ball Material: Silicon Nitride
  • Stem Length: 30 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 18 mm

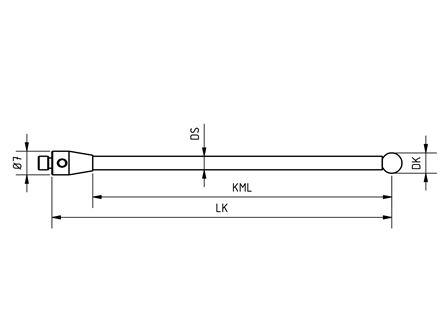

  • DK: 1 mm
  • LK: 30 mm
  • KML: 18 mm
  • DS: 0.8 mm
