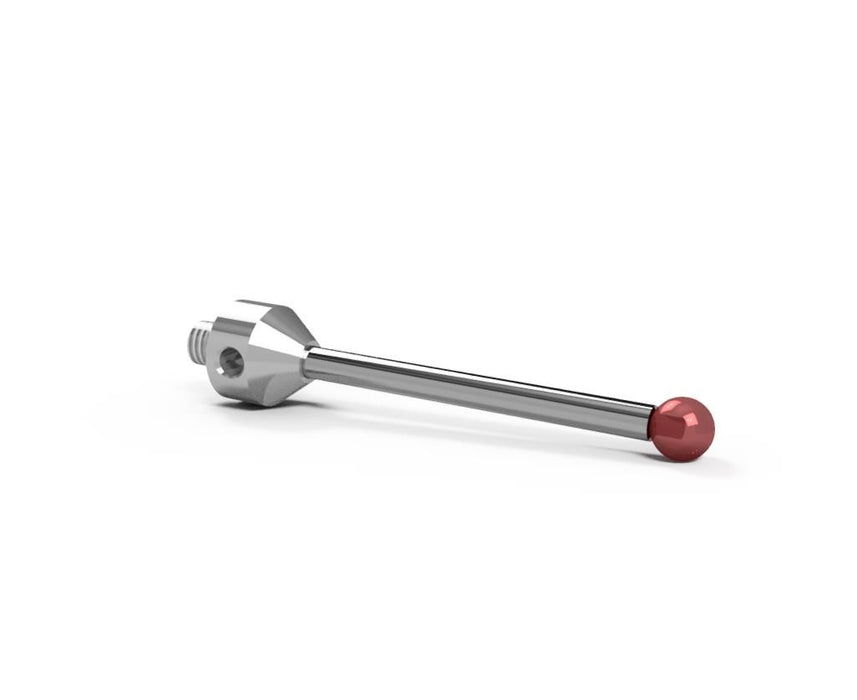

SM5 030 075 RCA - Straight M5 CMM Stylus 3mm Ruby Ball, 75mm Tungsten Carbide Stem, EWL 65mm

SM5 030 075 RCA - Straight M5 CMM Stylus, 3mm Ruby Ball, 75mm Tungsten Carbide Stem, 65mm EWL

CAD$93.00 - CAD$93.00
CAD$93.00
CAD$93.00 - CAD$93.00
CAD$93.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M5
  • Ball Size: 3 mm Ball
  • Ball Material: Ruby
  • Stem Length: 75 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 65 mm

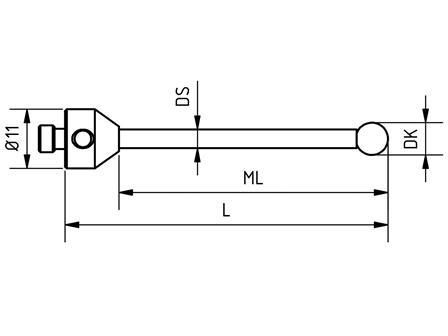

  • DK: 3 mm
  • L: 75 mm
  • ML: 65 mm
  • DS: 2 mm

Equivalent to:

  • QMark ATG-3075
  • ITP TH M5 030 11 075
