SM5 035 075 RCA - Straight M5 CMM Stylus 3.5mm Ruby Ball, 75mm Tungsten Carbide Stem, EWL 65mm

SM5 035 075 RCA - Straight M5 CMM Stylus 3.5mm Ruby Ball, 75mm Tungsten Carbide Stem, EWL 65mm

CAD$61.00 - CAD$61.00
CAD$61.00
CAD$61.00 - CAD$61.00
CAD$61.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M5
  • Ball Size: 3.5 mm Ball
  • Ball Material: Ruby
  • Stem Length: 75.0 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 65.0 mm

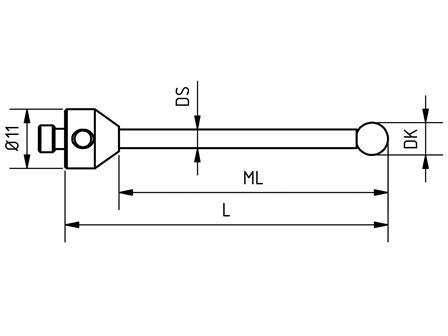

  • DK: 3.5 mm
  • L: 75.0 mm
  • ML: 65.0 mm
  • DS: 2.5 mm
