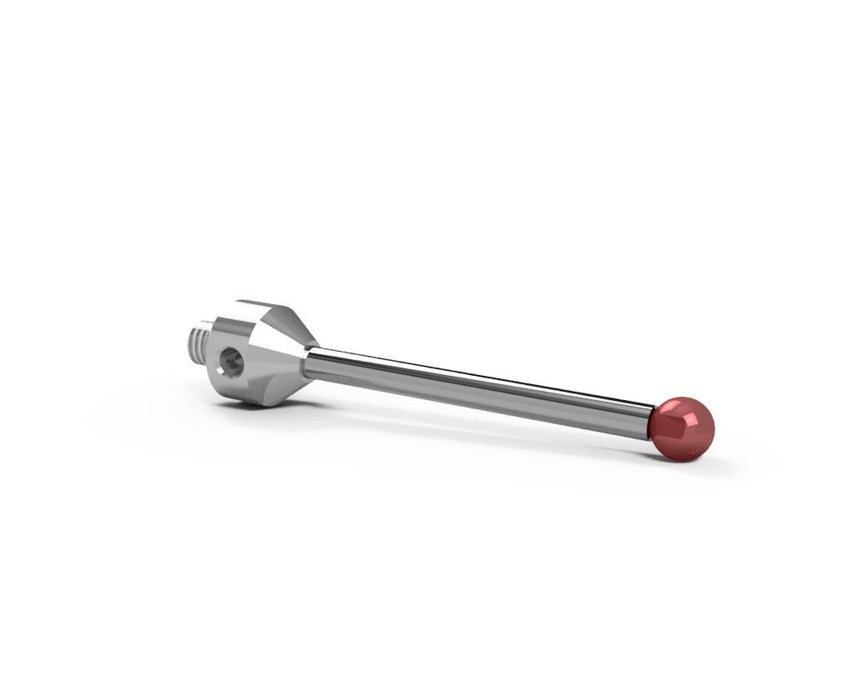

SM5 040 175 RCA - Straight M5 CMM Stylus 4mm Ruby Ball, 175mm Tungsten Carbide Stem, EWL 160mm

SM5 040 175 RCA - Straight M5 CMM Stylus 4mm Ruby Ball, 175mm Tungsten Carbide Stem, EWL 160mm

CAD$225.00 - CAD$225.00
CAD$225.00
CAD$225.00 - CAD$225.00
CAD$225.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M5
  • Ball Size: 4 mm Ball
  • Ball Material: Ruby
  • Stem Length: 175 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 160 mm

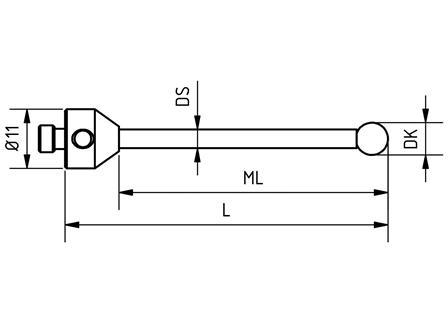

  • DK: 4 mm
  • L: 175 mm
  • ML: 160 mm
  • DS: 3 mm
