SM5 050 05035 RCA - Straight M5 CMM Stylus 5mm Ruby Ball, 50mm Long 3.5 mm Diameter Tungsten Carbide Stem , EWL 40mm

SM5 050 035 RCA - Straight M5 CMM Stylus, 5mm Ruby Ball, 35mm Tungsten Carbide Stem , 25mm EWL

CAD$57.00 - CAD$57.00
CAD$57.00
CAD$57.00 - CAD$57.00
CAD$57.00
  • Thread Size: M5
  • Ball Size: 5 mm Ball
  • Ball Material: Ruby
  • Stem Length: 35 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 25 mm

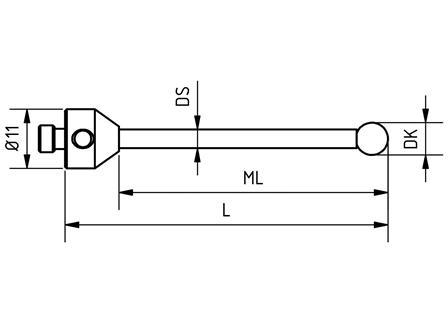

  • DK: 5 mm
  • L: 35 mm
  • ML: 25 mm
  • DS: 3.5 mm
