SM5 050 050 RCA - Straight M5 CMM Stylus 5mm Ruby Ball, 50mm Tungsten Carbide Stem, EWL 40mm

SM5 050 050 RCA - Straight M5 CMM Stylus 5mm Ruby Ball, 50mm Tungsten Carbide Stem, EWL 40mm

CAD$57.00 - CAD$57.00
CAD$57.00
CAD$57.00 - CAD$57.00
CAD$57.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M5
  • Ball Size: 5.0 mm Ball
  • Ball Material: Ruby
  • Stem Length: 50.0 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 40.0 mm

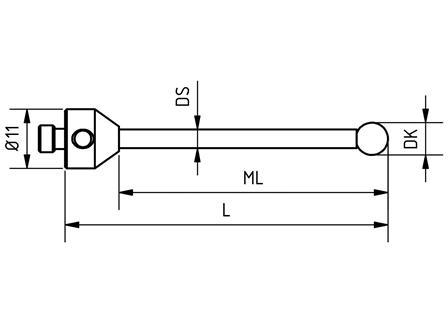

  • DK: 5.0 mm
  • L: 50.0 mm
  • ML: 40.0 mm
  • DS: 2.5 mm
