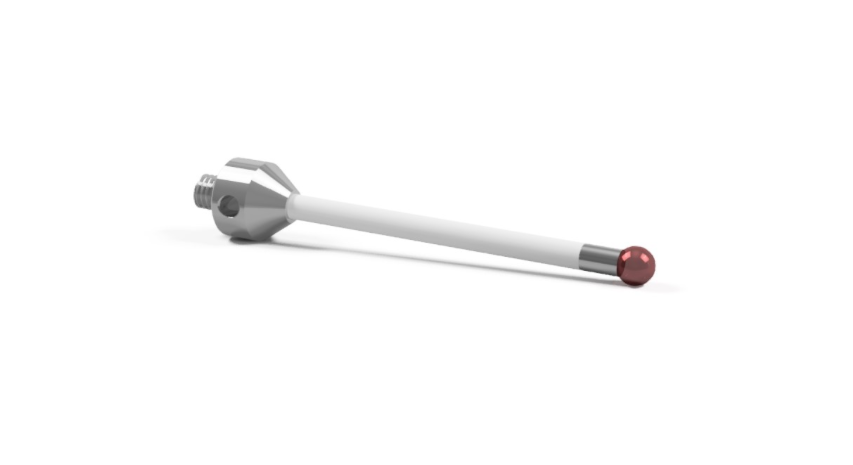

SM5 050 100 RCE - Straight M5 CMM Stylus 5mm Ruby Ball, 100mm Ceramic Stem, EWL 90mm

SM5 050 100 RCE - Straight M5 CMM Stylus 5mm Ruby Ball, 100mm Ceramic Stem, EWL 90mm

CAD$81.00 - CAD$81.00
CAD$81.00
CAD$81.00 - CAD$81.00
CAD$81.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M5
  • Ball Size: 5.0 mm Ball
  • Ball Material: Ruby
  • Stem Length: 100.0 mm
  • Stem Material: Ceramic
  • Effective Working Length: 90.0 mm

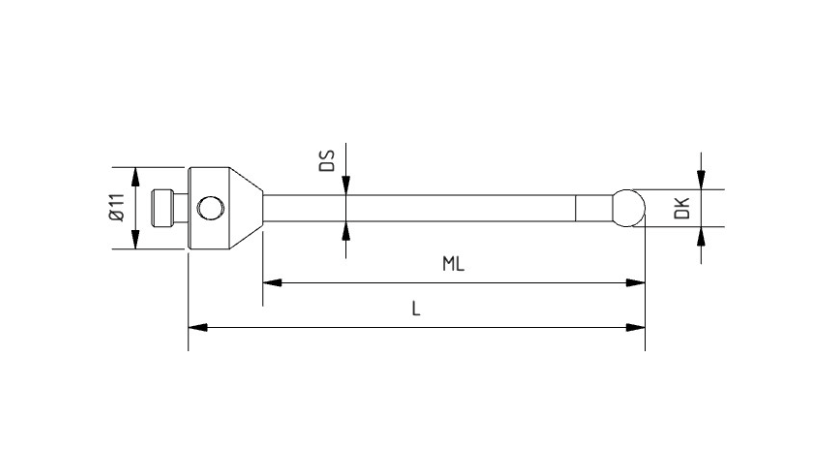

  • DK: 5.0 mm
  • L: 100.0 mm
  • ML: 90.0 mm
  • DS: 3.5 mm
