SM5 S10 025 RCA - Stepped M5 CMM Stylus 1mm Ruby Ball, 25mm Tungsten Carbide Stem, EWL 5mm

SM5 S10 025 RCA - Stepped M5 CMM Stylus, 1mm Ruby Ball, 25mm Tungsten Carbide Stem, 15mm EWL

CAD$82.00 - CAD$82.00
CAD$82.00
CAD$82.00 - CAD$82.00
CAD$82.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M5
  • Ball Size: 1 mm Ball
  • Ball Material: Ruby
  • Stem Length: 25 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 15 mm

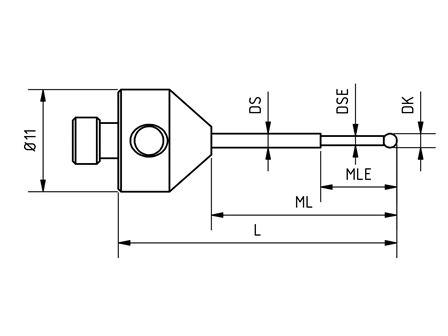

  • DK: 1 mm
  • L: 25 mm
  • ML: 15 mm
  • MLE: 5.5 mm
  • DS: 1 mm
  • DSE: 0.7 mm

Equivalent to:

  • Zeiss 626115-0100-025
  • QMark AFG-1025
  • ITP TH M5 010 11 025
