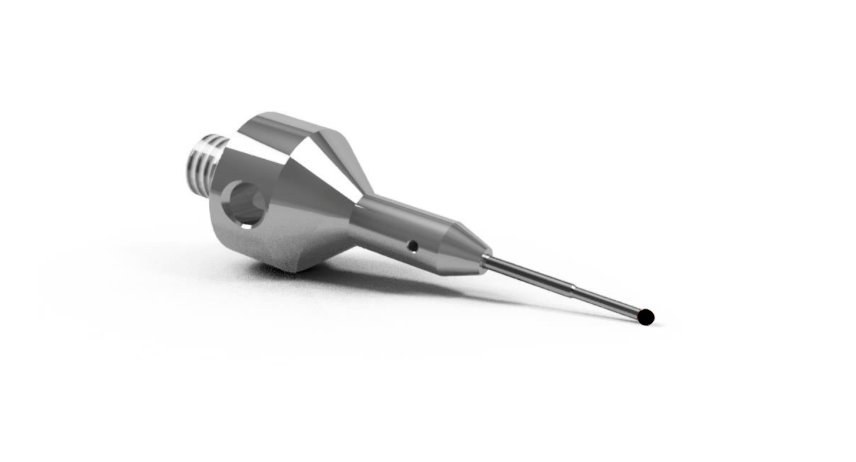

SM5 S10 025 SCA - Stepped M5 CMM Stylus, 1mm Silicon Nitride Ball, 25mm Tungsten Carbide Stem, 15mm EWL

SM5 S10 025 SCA - Stepped M5 CMM Stylus, 1mm Silicon Nitride Ball, 25mm Tungsten Carbide Stem, 15mm EWL

Sold out
$62.00 - $62.00
$62.00
$62.00 - $62.00
$62.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M5
  • Ball Size: 1 mm Ball
  • Ball Material: Silicon Nitride
  • Stem Length: 25 mm
  • Stem Material: Tungsten Carbide

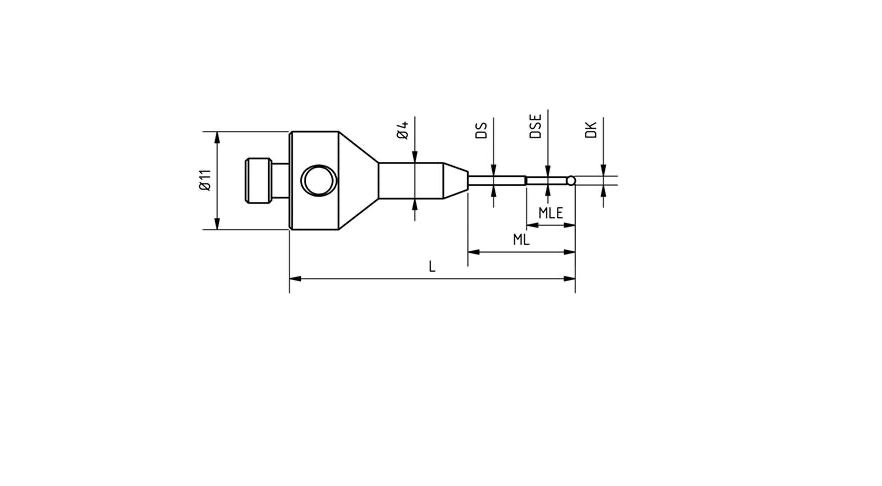

  • Effective Working Length: 15 mm
  • DK: 1 mm
  • L: 25 mm
  • ML: 15 mm
  • MLE: 5.5 mm
  • DS: 1 mm
  • DSE: 0.7 mm
