SM5 S15 030 RCA - Stepped M5 CMM Stylus, 1.5mm Ruby Ball, 30mm Tungsten Carbide Stem, 20mm EWL

Original price $61.00 - Original price $61.00
Original price
$61.00
$61.00 - $61.00
Current price $61.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M5
  • Ball Size: 1.5 mm Ball
  • Ball Material: Ruby
  • Stem Length: 30 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 20 mm

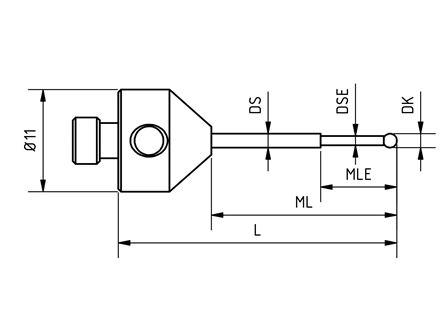

  • DK: 1.5 mm
  •  30 mm
  •  20 mm
  • MLE: 8.75 mm
  •  1.5 mm
  •  1 mm

 Equivalent to:

  • QMark AFG-1530-DSI
