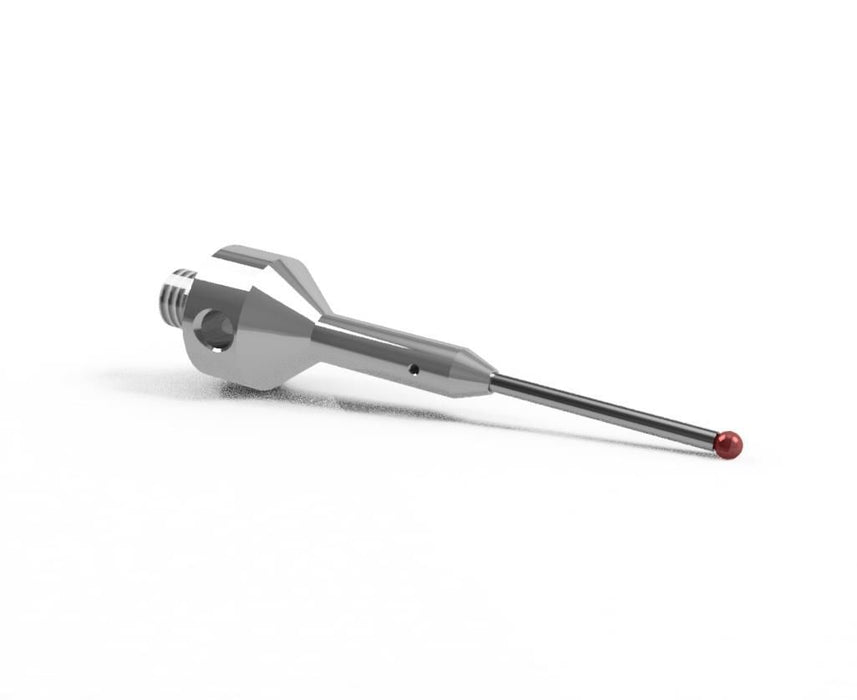

SM5 S20 032 RCA - Stepped M5 CMM Stylus 2mm Ruby Ball, 32mm Tungsten Carbide Stem, EWL 12mm

SM5 S20 032 RCA - Stepped M5 CMM Stylus, 2mm Ruby Ball, 32mm Tungsten Carbide Stem, 12mm EWL

CAD$67.00 - CAD$67.00
CAD$67.00
CAD$67.00 - CAD$67.00
CAD$67.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M5
  • Ball Size: 2 mm Ball
  • Ball Material: Ruby
  • Stem Length: 32 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 12 mm

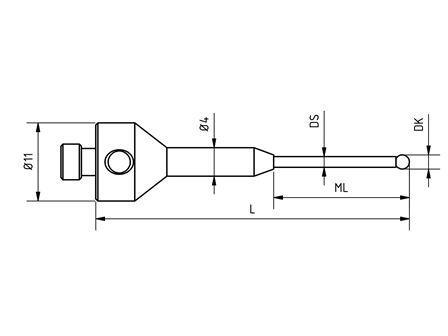

  • DK: 2 mm
  • L: 32 mm
  • ML: 12 mm
  • DS: 1.5 mm

Equivalent to:

  • Zeiss 602030-8066-000
  • QMark AQG-2032
  • ITP FH M5 020 11 032
