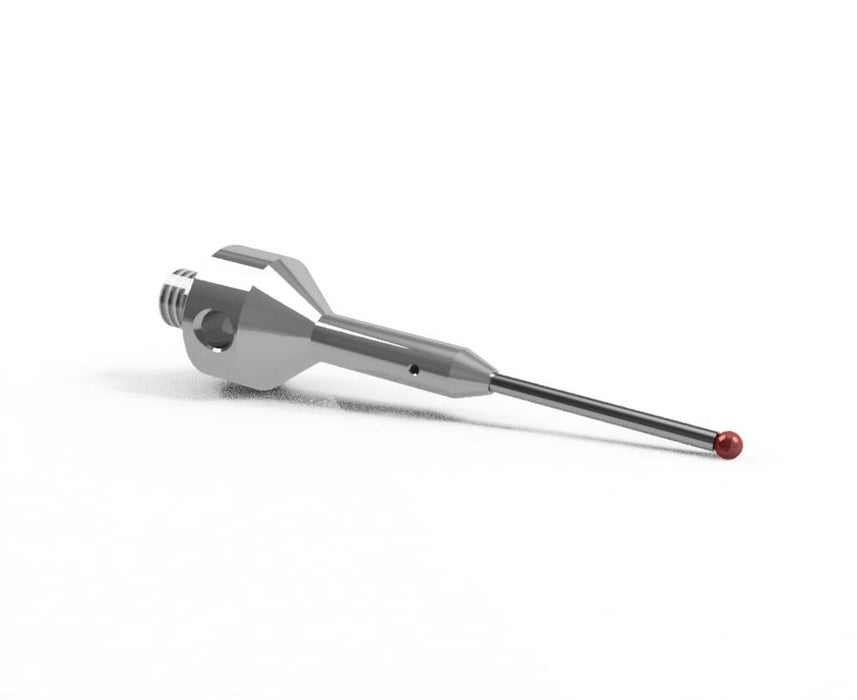

SM5 S25 044 RCA - Stepped M5 CMM Stylus 2.5mm Ruby Ball, 44mm Tungsten Carbide Stem, EWL 19mm

SM5 S25 044 RCA - Stepped M5 CMM Stylus, 2.5mm Ruby Ball, 44mm Tungsten Carbide Stem, 19mm EWL

$54.00 - $54.00
$54.00
$54.00 - $54.00
$54.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M5
  • Ball Size: 2.5 mm Ball
  • Ball Material: Ruby
  • Stem Length: 44 mm
  • Stem Material: Tungsten Carbide
  • Effective Working Length: 19 mm

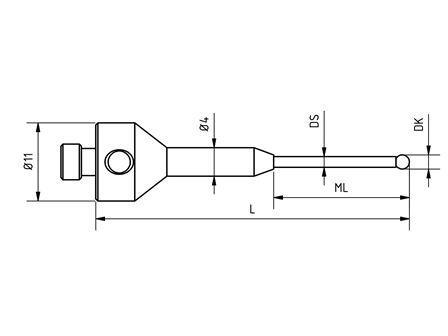

  • DK: 2.5 mm
  • L: 44 mm
  • ML: 19 mm
  • DS: 1.5 mm

Equivalent to:

  • Zeiss 602030-8070-000
  • QMark ARG-2544
  • ITP FH M5 025 11 044
