SM5 M03 025 CCA - Stepped Micro M5 CMM Stylus 0.3mm Carbide Ball, 25mm Tungsten Carbide Stem, EWL 1.3mm

SM5 M03 025 CCA - Stepped Micro M5 CMM Stylus, 0.3mm Carbide Ball, 25mm Tungsten Carbide Stem, 15mm EWL

$106.00 - $106.00
$106.00
$106.00 - $106.00
$106.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M5
  • Ball Size: 0.3 mm Ball
  • Ball Material: Carbide
  • Stem Length: 25 mm
  • Stem Material: Carbide
  • Effective Working Length: 15 mm

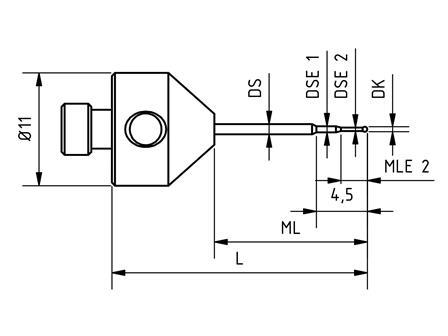

  • DK: 0.3 mm
  • DS: 1 mm
  • DSE1/2: 0.5/0.23 mm
  • L: 25 mm
  • ML: 15 mm
  • MLE1/2: 4.5/1.3 mm
