SM5 M03 025 RCA - Stepped Micro M5 CMM Stylus, 0.3mm Ruby Ball, 25mm Tungsten Carbide Stem, 15mm EWL

SM5 M03 025 RCA - Stepped Micro M5 CMM Stylus, 0.3mm Ruby Ball, 25mm Tungsten Carbide Stem, 15mm EWL

$108.00 - $108.00
$108.00
$108.00 - $108.00
$108.00
// comment out from row 619 - 683 to remove "quantity" and "add to cart" buttons - pz 08/30/2021
  • Thread Size: M5
  • Ball Size: 0.3 mm Ball
  • Ball Material: Ruby
  • Stem Length: 25 mm
  • Stem Material: Carbide
  • Effective Working Length: 15 mm

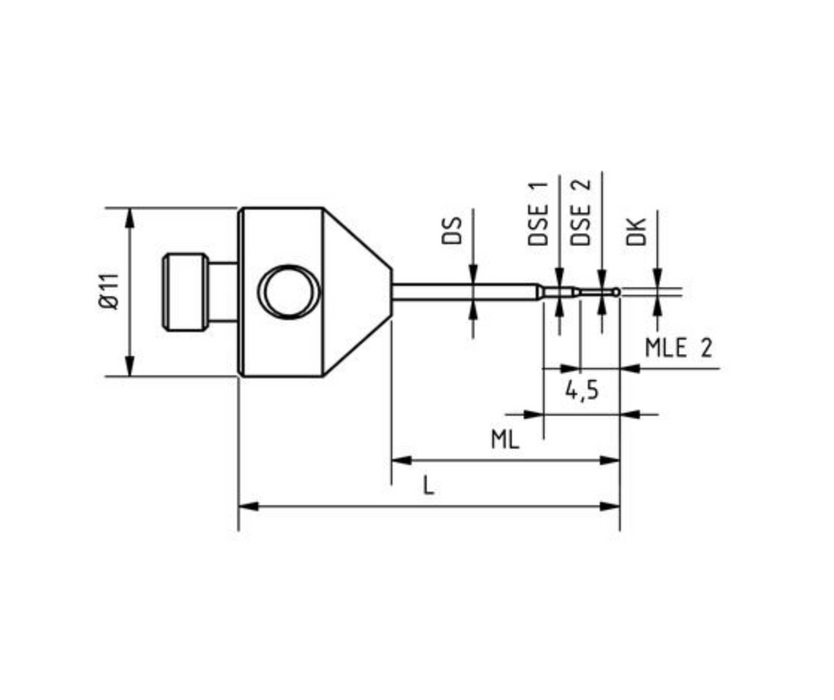

  • DK: 0.3 mm
  • DS: 1 mm
  • DSE1/2: 0.5/0.23 mm
  • L: 25 mm
  • ML: 15 mm
  • MLE1/2: 4.5/1.3 mm

Equivalent to:

  • QMark AFG-0325-C
